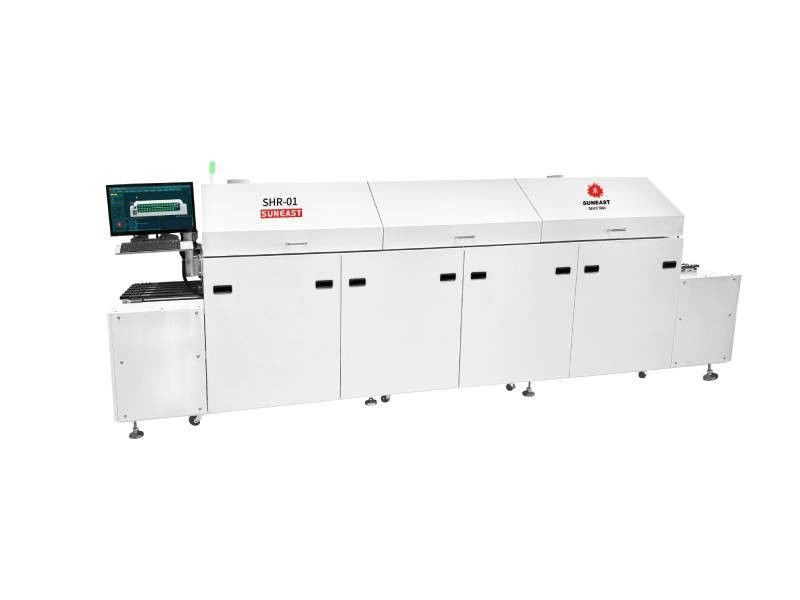

In Line Tunnel Drying Oven 50mm-400mm Rail Conveyor Convection Tunnel Oven

Brand Name:	Suneast
Model Number:	SHR-01G
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Tunnel Oven

Model:

SHR-01G

Dimension:

4200(L)*1300(W)*1685(H)mm

Weight:

Approx. 1400kg

Power Supply:

3P5L 380V 50/60Hz

Conveying Width:

Min50mm-max400mm

Product Height (including Fixture):

Max95mm

Temperature Control Mode:

Temperature Range:

Room Temp~200℃

Running Power:

Approx.6KW

Temperature Value Display Accuracy:

Customizable:

Highlight:

wave selective soldering combined multi module

selective combined wave soldering multi module

multi module wave solder combined selective

Product Description

In Line Tunnel Drying Oven 50mm-400mm Rail Conveyor Convection Tunnel Oven

Product Specifications

Attribute	Value
Name	Tunnel Oven
Model	SHR-01G
Dimension	4200(L)1300(W)1685(H)mm
Weight	Approx. 1400kg
Power Supply	3P5L 380V 50/60Hz
Conveying width	min50mm-max400mm
Product height (including fixture)	Max95mm
Temperature control mode	PID
Temperature range	Room temp~200℃
Running power	Approx.6KW
Temperature value display accuracy	1℃
Customizable	Yes

Product Description

The In-Line Tunnel Oven SHR-01G Series Rail Conveyor features:

Wear-resistant guide rail construction for durability and high interchangeability
Adjustable guide rail width to accommodate various product sizes
Stainless steel chain with guard and anti-jam design for reliability
Optional multi rail transmission for different process requirements
Full modular design for easy maintenance and reduced downtime
Patented hot air system for efficient convection and faster heat compensation
Multi-layer heat insulation furnace structure to reduce ambient temperature

Key Features

Stage temperature control with PID for uniform furnace temperature and superior curing quality
Hot air circulation system with high thermal efficiency, saving over 25% power compared to traditional equipment
Special heat insulation structure maintains near room temperature on machine housing
Modular design allows flexible configuration for various process requirements
Compatible with automatic production lines to optimize manpower and reduce defects

Applications

Ideal for curing products without process edge or bottom space requirements
Adjustable rail width accommodates diverse product specifications
Suitable for PCB, LED, Mini LED, capacitor, power supply and other electronic component curing
Used in electronics, automotive electronics, semiconductors, and 3C products industries

System Components

01 Monitor
02 Exhaust system
03 Chamber lifting unit
04 Heating module
05 Bottom chamber module
06 Top chamber module
07 Conveyor system
08 Conveyor motor

Available Options

Cooling system: Pressure charged air cooling or water chiller
Nitrogen system
MES interface
Temperature profile interface
Buffering system: Multi-channel buffer with shifting connection
Preheating system: Customizable length
Conveyor system: 500mm, 850mm or custom widths, multi-channel design
Rack: With fixture installation position
Custom conveying rails: Tailored to product process requirements

Technical Parameters

Model	SHR-01G(01-05T-400)	SHR01G(01-05T)	Remarks
Dimension	L4200xW1300xH1685mm	L4200xW1650xH1685mm
Weight	Approx.1400kg	Approx.1800kg
Power Supply	3P5L 380V 50/60Hz	3P5L 380V 50/60Hz
Control system	PC+PLC	PC+PLC
Total Power	Approx.32KW	Approx.32KW
Conveying Type	Stainless steel anti-jam chain	Stainless steel anti-jam chain
Guide fixed mode	Front end fixed	Front and back end fixed, 2 movable guide rails in the middle
Conveying width	min50mm-max400mm	min50mm-max350mm (Dual-track simultaneity)
Product height (including fixture)	max95mm	max95mm
Infeed height	900±20mm	900±20mm
Conveying Speed	100-500mm/min	100-500mm/min
Speed control mode	Closed loop stepless speed regulation by inverter	Closed loop stepless speed regulation by inverter
Conveying direction	L-R(Option:R-L)	L-R(Option:R-L)
Temperature control mode	PID	PID
Temperature range	Room temp~200℃	Room temp~200℃
Heating system	Heating on the channel	Heating on the channel
Heating zones	5 heating zones	5 heating zones
Heating zone length	3000mm	3000mm
Cooling zone length	N/A	N/A	Option
Warming up time	Approx.15min	Approx.15min	Set temp 150℃
Running power	Approx.6KW	Approx.7kW
Temperature value display accuracy	1℃	1℃
Abnormal alarm	Three-color signal light + human-machine interface alarm	Three-color signal light + human-machine interface alarm
Exhaust requirement	2-Φ150 air outlet, exhaust volume ~15m³/min per outlet	2-Φ150 air outlet, exhaust volume ~15m³/min per outlet
Parameter storage	Process Data and status storage	Process Data and status storage
Power cut protection	Equipped with UPS	Equipped with UPS
Air source	N/A	N/A

Installation Requirements

Power: Three phase five wire: 380V, 50/60HZ; Wire diameter ≥16mm² with 125A leakage protection switch (150-200mA capacity)
Ground: Must withstand 1000kg/m² pressure
Ventilation: Requires 2-Ø150mm ducts; Two exhaust ports with ~15M³/min exhaust volume each

Customization Note

Heating zone configurations can be customized: 4, 5, 8, 9, 10, or 12 heating zones available based on production capacity requirements.
