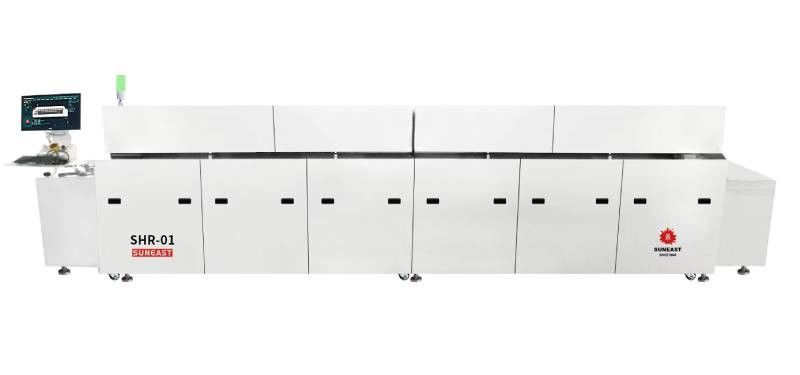

High Temperature Tunnel Ovens 5 Zone Chain Conveyor Industrial Tunnel Oven

Brand Name:	Suneast
Model Number:	SHR-01Z
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Tunnel Oven

Model:

SHR-01Z

Dimension:

3600(L)*1300(W)*1685(H)mm

Weight:

Approx.1400kg

Power Supply:

3P5L 380V 50/60Hz

Conveying Type:

Heavy Duty Industrial Chain

Conveying Width:

Max600mm

Product Height (including Fixture):

Max100mm

Temperature Control Mode:

Heating Zones:

Running Power:

Approx.6KW

Customizable:

Highlight:

multi module selective wave soldering combined

multi module wave soldering combined selective

combined selective wave soldering multi module

Product Description

High Temperature Tunnel Ovens 5 Zone Chain Conveyor Industrial Tunnel Oven

Product Specifications

Model	SHR-01Z
Dimension	3600(L)1300(W)1685(H)mm
Weight	Approx. 1400kg
Power Supply	3P5L 380V 50/60Hz
Conveying Type	Heavy duty industrial chain
Conveying Width	Max 600mm
Product Height (including fixture)	Max 100mm
Temperature Control Mode	PID
Heating Zones	5
Running Power	Approx. 6KW
Customizable	Yes

Product Description

The SHR-01Z Series High Temperature Tunnel Oven features a heavy duty industrial chain conveyor system designed for high load applications with minimal wear and long service life. Its modular design ensures easy maintenance while reducing downtime and costs.

Key Features

Stage temperature control with PID technology for uniform furnace temperature and superior curing quality
Hot air circulation system with 25% greater energy efficiency than traditional equipment
Special heat insulation structure maintains near-room temperature on exterior surfaces
Modular design allows flexible configuration for various process requirements
Compatible with automated production lines to reduce labor costs and defects

Applications

Heavy load carriers and large fixture conveying
High capacity products requiring long curing times (audio components, Mini LED solidification)
New energy vehicle drive motor packaging and baking
PCB, LED, capacitor, power supply component curing processes

System Components

Monitor
Exhaust system
Chamber lifting unit
Heating module
Bottom chamber module
Top chamber module
Conveyor system
Conveyor motor

Available Options

Cooling system: Pressure charged air cooling or water chiller
Nitrogen system
MES interface
Temperature profile interface
Buffering system: Multi-channel buffer with shifting connection
Preheating system: Customizable length
Conveyor system: 500mm, 850mm or custom widths
Customized conveying rails for specific process requirements

Technical Parameters

Parameter	SHR-01Z(01-05T-600)	SHR01Z(01-05T-950)
Dimension	L3600xW1300xH1685mm	L3600xW1650xH1685mm
Weight	Approx.1400kg	Approx.1800kg
Power Supply	3P5L 380V 50/60Hz	3P5L 380V 50/60Hz
Total Power	Approx.32KW	Approx.32KW
Conveying Speed	100-500mm/min	100-500mm/min
Temperature Range	Room temp~200℃	Room temp~200℃

Installation Requirements

Power: Three phase five wire (380V, 50/60HZ) with 16mm² wire diameter and 125A leakage protection switch
Floor must withstand 1000kg/m² pressure
Ventilation: Two Ø150mm exhaust ports with 15M³/min exhaust volume each
