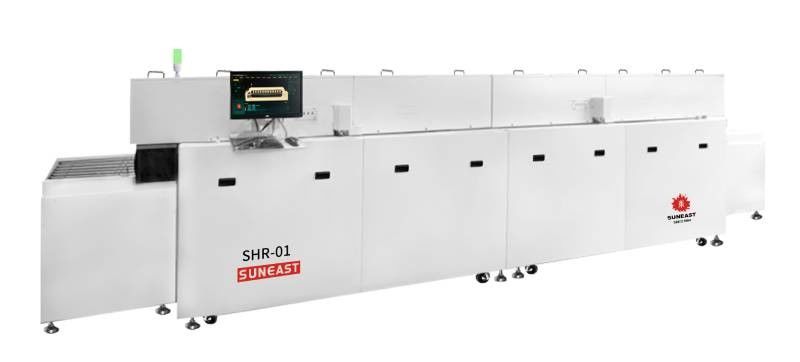

Tunnel Drying Oven 3P5L Board Supporting Chain Conveyorized Oven

Brand Name:	Suneast
Model Number:	SHR-01B
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Tunnel Oven

Model:

SHR-01B

Dimension:

6566(L)*1420(W)*1685(H)mm

Weight:

Approx.1400kg

Power Supply:

3P5L 380V 50/60Hz

Control System:

PC+PLC

Conveying Type:

Stainless Steel Customized Supporting Chain

Heating Zones:

Running Power:

Approx.6KW

Temperature Value Display Accuracy:

Power Cut Protection:

Equipped With UPS

Customizable:

Highlight:

magnetic linear motor 11.2nm

magnetic motor 11.2nm linear

linear 11.2nm motor magnetic

Product Description

Tunnel Drying Oven 3P5L Board Supporting Chain Conveyorized Oven

Product Overview

The SHR-01B Series Tunnel Oven features a customized stainless steel board supporting chain conveyor system designed for durability, stability, and high performance in industrial drying applications.

Key Specifications

Attribute	Value
Model	SHR-01B
Dimensions	6566(L) × 1420(W) × 1685(H)mm
Weight	Approx. 1400kg
Power Supply	3P5L 380V 50/60Hz
Control System	PC+PLC
Conveying Type	Stainless steel customized supporting chain
Heating Zones	8
Running Power	Approx. 6KW
Temperature Accuracy	1℃
Power Protection	Equipped with UPS
Customization	Available

Advanced Features

Customized stainless steel conveyor chain with minimal wear and long service life
Multi-channel design for increased production capacity
Modular construction for easy maintenance and reduced downtime
Patented hot air system for efficient convection and rapid heat compensation
Multi-layer insulation design reduces external surface temperature
Stage temperature control with PID regulation for uniform curing
Energy efficient design saves over 25% power compared to conventional ovens

Applications

Magazine type curing processes
Multi-channel conveying (6-channel, 10-channel, 16-channel configurations)
Mini LED solidification requiring long curing times
PCB, LED, capacitor, power supply component baking
Electronic products, automotive electronics, semiconductors, 3C products

System Components

Front and rear side buffering
Monitor display
Chamber lifting unit
Heating module
Bottom and top chamber modules
Conveyor system with motor
Exhaust system

Optional Features

Cooling system: Pressure charged air cooling or water chiller
Nitrogen system for specialized applications
MES interface for manufacturing execution system integration
Temperature profile interface for process monitoring
Buffering system: Multi-channel buffer with shifting connection
Preheating system with customizable length
Custom conveyor widths: 500mm, 850mm, or bespoke dimensions
Rack system with fixture installation positions
Custom guide rails for specialized product handling

Technical Parameters

Parameter	Specification	Notes
Model	SHR-01B(01-08T-C06)
Dimensions	L6566×W1420×H1685mm
Weight	Approx.1400kg
Power Supply	3P5L 380V 50/60Hz
Control System	PC+PLC
Total Power	Approx.45KW
Conveying Channels	6 Channels
Product Dimensions	L162×W68-82×H160mm	Including fixture
Infeed Height	900±20mm
Conveying Speed	30-150mm/min	Variable frequency control
Temperature Range	Room temp~200℃	PID control
Heating Zones	8 zones (4800mm length)
Warm-up Time	Approx.15min	@150℃ setpoint
Exhaust Requirements	2-Φ150 air outlets	15m³/min per outlet

Installation Requirements

Power supply: Three phase five wire (380V, 50/60Hz) with 16mm² wire diameter minimum
Leakage protection switch: 125A with 150-200mA capacity
Floor loading capacity: Minimum 1000kg/m²
Ventilation: Two Ø150mm exhaust ducts required (15m³/min each)
