| Brand Name: | Suneast |
| Model Number: | SHR-01L |
| MOQ: | ≥1 pc |
| Price: | Negotiable |
| Packaging Details: | Plywood crate |
| Payment Terms: | T/T |

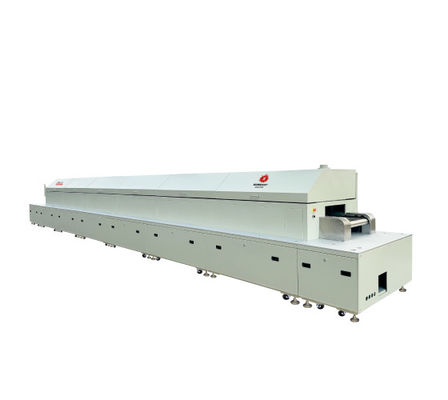

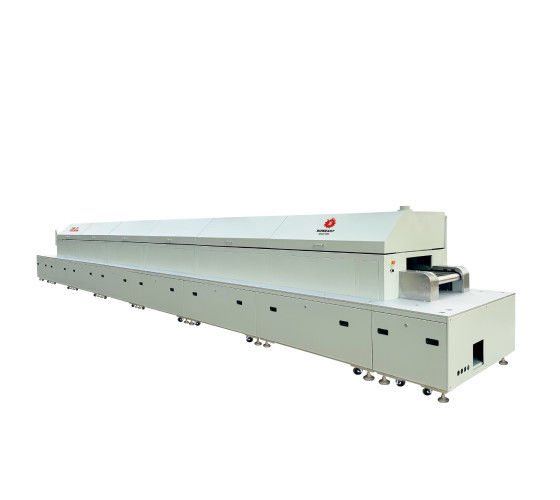

Tunnel Drying Oven SHR-01L Series Force Bone Net Conveyor
SHR-01L series tunnel oven is composed of the rack system, hot air circulation system, conveying system, heating system and electrical control system. Selected high quality stainless steel force bone net, good wear resistance, long service life, running balance. Adopting modular, digital and humanized design, it has good advantages in function, performance, reliability, stability, security, maintainability, and easy operation , which not only reduces operating costs for customers, but also provides strong guarantee for customers to produce qualified products with quality and quantity. Force bone net conveyor, can cope with a variety of kinds of product, especially suitable for small size product, large number of production needs, the products can be flexibly arranged on the net, this equipment can be used with automatic loading and unloading mechanism.
Features:
Application range:
Overall diagram:
01 Monitor
02 Exhaust system
03 Chamber lifting unit
04 Heating module
05 Bottom chamber module
06 Top chamber module
07 Conveyor system
08 Conveyor motor
Options:
1. Pressure charged air cooling
2. Water chiller
1. Multi-channel buffer
2. With shifting connection
The preheating length can be customized.
1. Conveying width can be 500mm, 850mm, or to be customized
2. Multi-channel design
1.Reserve the installation position for the fixture
The guide rail conveying mode can be customized according to the product process requirements.
Product Parameters:
| Model | SHR-01L(01-05T-500) | SHR01L(01-05T-850) | Remarks |
| Dimension | L3600xW1300xH1685mm | L3600xW1650xH1685mm | |
| Weight | Approx.1400kg | Approx.1800kg | |
| Power Supply | 3P 5L 380V 50/60Hz | 3P 5L 380V 50/60Hz | |
| Control system | PC+PLC | PC+PLC | |
| Total Power | Approx.32KW | Approx.32KW | |
| Conveying Type | Force bone net | Force bone net | |
| Conveying width | Max500mm | Max850mm | |
|
Product height (including fixture) |
Max100mm | Max100mm | |
| Infeed height | 900±20mm | 900±20mm | |
| Conveying Speed | 100-500mm/min | 100-500mm/min | |
| Speed control mode | Closed Ioop stepless speed regulation by inverter | Closed Ioop stepless speed regulation by inverter | |
| Conveying direction | L-R(Option:R-L) | L-R(Option:R-L) | |
| Temperature control mode | PID | PID | |
| Temperature range | Room temp~200℃ | Room temp~200℃ | |
| Heating system | Heating on the channel | Heating on the channel | |
| Heating zones | 5 heating zones | 5 heating zones | |
| Heating zone length | 3000mm | 3000mm | |
| Cooling zone length | N/A | 无NA | Option |
| Warming up time | Approx.15min | Approx.15min | Set temp 150℃ |
| Running power | Approx.6KW | Approx.7kW | |
| Temperature value display accuracy | 1℃ | 1℃ | |
| Abnormal alarm | Three-color signal light+ human-machine interface alarm |
Three-color signal light+ human-machine interface alarm |
|
| Exhaust requirement | 2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min | 2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min | |
| Parameter storage | Process Data and status storage | Process Data and status storage | |
| Power cut protection | Equipped with UPS | Equipped with UPS | |
| Air source | N/A | N/A | |
|
1.Option:The front end and rear end of the machine can be extended,and the outer side of the protruding of the upper furnace is300mm(the length of the whole machine will be lengthened 600mm). 2.Note:According to production capacity requirements,the recommended heating zone number is:4 heating zones,5 heating zones,8 heating zones,9 heating zones,10 heating zones,12 heating zones,which can be customized. |
|||
Notices:
1.Power requirements:
①Three phase five wire: voltage 380V, frequency 50/60HZ;
②The wire diameter requirement is 16mm² or more, with a leakage protection switch of 125A and a leakage capacity of 150-200mA.
2.The ground is required to withstand a pressure of 1000kg/m².
3.External ventilation requirements: Duct specification 2-Ø150mm; Two exhaust ports, with a single exhaust port having an exhaust volume of approximately 15M³/min.
