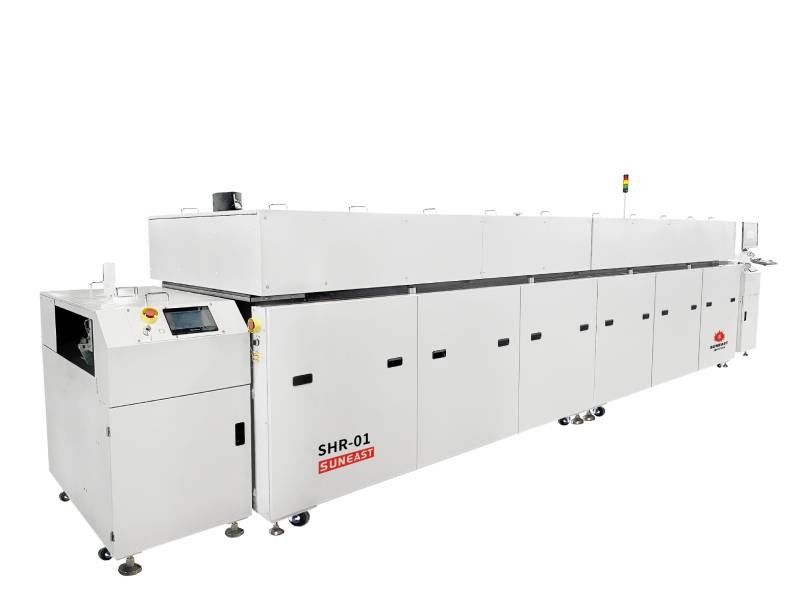

5 Zones Tunnel Drying Oven High Temp PCB Drying Oven Wide Board Heavy Load

Brand Name:	Suneast
Model Number:	SHR-01K
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Tunnel Oven

Model:

SHR-01K

Dimension:

3600(L)*1300(W)*1685(H)mm

Weight:

1400kg

Power Supply:

3P 5L 380V 50/60Hz

Conveying Type:

Stainless Steel Wide Board Heavy Load Chain

Heating System:

Heating On The Channel

Heating Zones:

Running Power:

Approx.6KW

Temperature Value Display Accuracy:

Power Cut Protection:

Equipped With UPS

Customizable:

Highlight:

soldering multi module combined selective wave

selective wave soldering combined multi module

multi module selective soldering combined wave

Product Description

5 Zones Tunnel Drying Oven High Temp PCB Drying Oven Wide Board Heavy Load

Product Specifications

Attribute	Value
Name	Tunnel Oven
Model	SHR-01K
Dimension	3600(L)1300(W)1685(H)mm
Weight	1400kg
Power Supply	3P 5L 380V 50/60Hz
Conveying Type	Stainless steel wide board heavy load chain
Heating system	Heating on the channel
Heating zones	5
Running power	Approx.6KW
Temperature value display accuracy	1℃
Power cut protection	Equipped with UPS
Customizable	Yes

Product Description

High Temperature Tunnel Drying Oven with Wide Board Heavy Load Chain Conveyor system. Heavy load wide board chain + rail conveyor provides strong carrying capacity, suitable for heavy load applications. Features compatible conveying width for flexibility to meet curing needs of various product sizes.

Key Features

Stage temperature control adapts to different product process requirements with PID temperature control for excellent furnace temperature uniformity and curing quality
Hot air circulation system provides high thermal efficiency with 25%+ power savings compared to traditional equipment
Special heat insulation structure keeps machine housing surface temperature close to room temperature
Modular design allows flexible configuration for various process requirements, especially long baking processes
Compatible with automatic production lines to reduce labor costs, handling, and defects

Applications

Curing products without process edge or bottom space requirements
Magazine type curing for LED, Mini LED solidification baking
Multi-channel product conveying when combined with transfer loading/buffering machines
Automation production line integration or manual product placement
Packaging, curing and baking of components for LED, capacitor and power supply applications
Electronic products, automotive electronics, semiconductors, and 3C products

System Components

Monitor
Exhaust system
Chamber lifting unit
Heating module
Bottom chamber module
Top chamber module
Conveyor system
Conveyor motor

Available Options

Cooling system: Pressure charged air cooling or water chiller
Nitrogen system
MES interface
Temperature profile interface
Buffering system: Multi-channel buffer or with shifting connection
Preheating system: Customizable preheating length
Conveyor system: 500mm, 850mm width or custom; Multi-channel design
Rack: Fixture installation position reserved
Customized conveying rails: Guide rail mode customized to product process requirements

Technical Parameters

Model	SHR-01K(01-05T 500)	SHR01K(01-05T-850)	Remarks
Dimension	L3600xW1300xH1685mm	L3600xW1650xH1685mm
Weight	Approx.1400kg	Approx.1800kg
Power Supply	3P 5L 380V 50/60Hz	3P 5L 380V 50/60Hz
Control system	PC+PLC	PC+PLC
Total Power	Approx.32KW	Approx.32KW
Conveying Type	Stainless steel wide board heavy load chain	Stainless steel wide board heavy load chain
Conveying width	Max500mm	Max850mm
Product height (including fixture)	Max100mm	Max100mm
Infeed height	900±20mm	900±20mm
Conveying Speed	100-500mm/min	100-500mm/min
Speed control mode	Closed loop stepless speed regulation by inverter	Closed loop stepless speed regulation by inverter
Conveying direction	L-R(Option:R-L)	L-R(Option:R-L)
Temperature control mode	PID	PID
Temperature range	Room temp~200℃	Room temp~200℃
Heating system	Heating on the channel	Heating on the channel
Heating zones	5 heating zones	5 heating zones
Heating zone length	3000mm	3000mm
Cooling zone length	N/A	N/A	Option
Warming up time	Approx.15min	Approx.15min	Set temp 150℃
Running power	Approx.6KW	Approx.7kW
Temperature value display accuracy	1℃	1℃
Abnormal alarm	Three-color signal light+ human-machine interface alarm	Three-color signal light+ human-machine interface alarm
Exhaust requirement	2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min	2-Φ150 air outlet,the exhaust air volume of a single air outlet is about 15m³/min
Parameter storage	Process Data and status storage	Process Data and status storage
Power cut protection	Equipped with UPS	Equipped with UPS
Air source	N/A	N/A

1. Option: The front end and rear end of the machine can be extended, and the outer side of the protruding of the upper furnace is 300mm (the length of the whole machine will be lengthened 600mm).

2. Note: According to production capacity requirements, the recommended heating zone number is: 4 heating zones, 5 heating zones, 8 heating zones, 9 heating zones, 10 heating zones, 12 heating zones, which can be customized.

Installation Requirements

1. Power requirements:
①Three phase five wire: voltage 380V, frequency 50/60HZ;
②The wire diameter requirement is 16mm² or more, with a leakage protection switch of 125A and a leakage capacity of 150-200mA.

2. The ground is required to withstand a pressure of 1000kg/m².

3. External ventilation requirements: Duct specification 2-Ø150mm; Two exhaust ports, with a single exhaust port having an exhaust volume of approximately 15M³/min.
