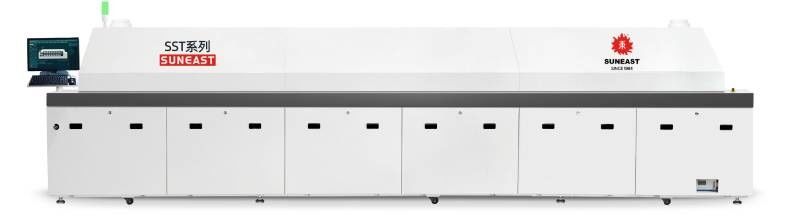

8 Zone Vacuum Reflow Soldering High Vacuum Reflow Oven Machine

Brand Name:	Suneast
Model Number:	SST-08A\|10A\|12A
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Model:

SST-08A/SST-08N

Dimension:

5550(L)*1450(W)*1620(H)mm

Weight:

2200-2400kg

Heating Zone:

8 Heating Zones，16 Heating Modules

Product Width:

Min50mm-max400mm

Inlet Height:

900±20mm

Component Height:

Clearance Based On The Rail：above 30mm，below 25mm

Power Supply:

AC3Ø，5W,380V,50/60HZ

Running Power:

7.5KW

Temp Control Accuracy:

Power Outage Protection:

Equipped With UPS

Customizable:

Highlight:

suneast pcb loader magazine plc

plc magazine suneast loader pcb

plc magazine loader pcb suneast

Product Description

8 Zone Vacuum Reflow Soldering High Vacuum Reflow Oven Machine

Product Specifications

Model	SST-08A/SST-08N
Dimension	5550(L)1450(W)1620(H)mm
Weight	2200-2400kg
Heating Zone	8 Heating Zones, 16 Heating modules
Product Width	min50mm-max400mm
Inlet Height	900±20mm
Component Height	Clearance based on the rail: above 30mm, below 25mm
Power Supply	AC3Ø, 5W, 380V, 50/60HZ
Running Power	7.5KW
Temp Control accuracy	±1℃
Power Outage Protection	Equipped with UPS
Customizable	Yes

Product Description

The SST Series Compact Durable Reflow Machine is designed for high-volume production, providing reliable soldering for PCBs through high-temperature heating that melts solder paste to bond components to circuit boards.

Applications: Widely used in consumer electronics, lighting, automotive electronics, communication equipment, industrial control, aerospace, energy industry, and other electronic product manufacturing fields.

Key Features

Durable, interchangeable double-sided rails with special hardening
Stainless steel belt chain with guard for anti-clamp protection
New flux recovery system with full modular design for easy maintenance
Patented hot air system for efficient heat compensation
Multi-layer heat insulation furnace structure reduces working environment temperature

Product Overview

Technical Parameters

Model No	SST-08A/S5T-08N	S5T-10A/SST-10N	SST-12A/SST-12N	SST-08DA/S5T-08DN	S5T-10DA/SST-10DN	SST-12DA/SST-12DN
Heating System
Heating Zone	8 zones, 16 modules	10 zones, 20 modules	12 zones, 24 modules	8 zones, 16 modules	10 zones, 20 modules	12 zones, 24 modules
Heating Length	3120mm	3870mm	4635mm	3120mm	3870mm	4635mm
Cooling Type	Three cooling zones: forced air cooling/water cooling
Conveyor System
Product Width	min50mm-max400mm			min50mm-max270mm (Dual track simultaneous) min50mm-max500mm (Dual track single use)
Conveying Speed	300mm-2000mm/min
Control System
Running Power	7.5KW	9.5KW	11.5KW	10KW	11.5KW	13KW
Temp Control accuracy	±1℃
General
Weight	2200-2400kg	2600-2800kg	3000-3200kg	2700-2900kg	3000-3200kg	3300-3500kg

Installation Requirements

1. Power requirements:

Three phase five wire: voltage 380V, frequency 50/60HZ
Wire diameter above 25mm², leakage protection switch 160A

2. The ground is required to withstand a pressure of 1000kg/m²

3. External ventilation requirements: air duct Ø145mm, ventilation volume 15-20M³/min
