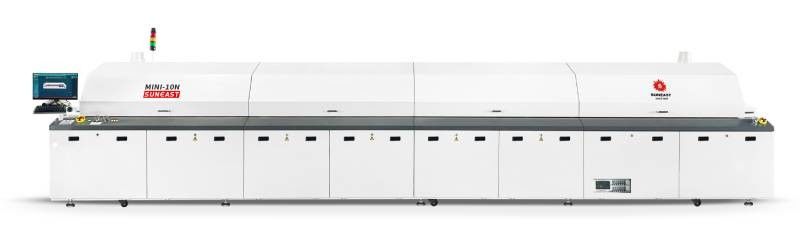

Mini Series 10 Zone Reflow Oven 96KW Hot Air Reflow Soldering Oven

Brand Name:	Suneast
Model Number:	MINI-10N/12N；MINI-10DN/12DN
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Reflow Soldering Oven

Model:

MINI-10N

Dimension:

6400(L)*1580(W)*1650(H)mm

Weight:

2500-2700kg

Heating Zone Structure:

10 Heating Zones, 20 Heating Modules

Heating Up Time:

25min

Cooling Type:

Three Cooling Zones: Forced Water Cooling

Conveyor Height:

900±20mm

Conveyor Speed:

300mm-2000mm/min

Total Power:

Startup Power:

Normal Consumption:

Temp Control Range:

Room Temperature To 320℃

Temp Control Accuracy:

Power Outage Protection:

Equipped With UPS

Customizable:

Highlight:

wave soldering selective combined multi module

multi module combined wave soldering selective

multi module combined selective wave soldering

Product Description

Mini Series 10 Zone Reflow Oven 96KW Hot Air Reflow Soldering Oven

Product Specifications

Attribute	Value
Name	Reflow Soldering Oven
Model	MINI-10N
Dimension	6400(L)1580(W)1650(H)mm
Weight	2500-2700kg
Heating zone structure	10 heating zones, 20 heating modules
Heating up time	25min
Cooling type	Three cooling zones: forced water cooling
Conveyor Height	900±20mm
Conveyor Speed	300mm-2000mm/min
Total Power	96KW
Startup Power	38KW
Normal consumption	10KW
Temp Control Range	Room temperature to 320℃
Temp Control accuracy	±1℃
Power Outage Protection	Equipped with UPS
Customizable	Yes

Product Overview

The Mini Series High-End Hot Air Reflow Soldering Oven is specifically designed for mini-LED applications which require exceptional cleanliness, temperature uniformity, and precise process control. Featuring advanced aero-engine turbine blade and eddy current technology hot air system with nitrogen heating technology, this oven delivers superior welding quality and stability.

Advanced Technology Features

CONVEYOR SYSTEM

Guide rail with special surface treatment, equivalent to steel hardness, durable; double-sided guide rail with high exchange ability, copper guide bar with stainless steel chain for conveying, friction resisting, no dust, ensuring furnace cleanliness requirements.

HOT AIR SYSTEM MULTI-FREQUENCY CONTROL

Multi-frequency converter control enables precise temperature control, with air flow range adjustable from low to high, ensuring stable and reliable system performance.

NEW AND UPGRADED ROSIN RECOVERY SYSTEM

Independent rosin recovery devices at inlet and outlet sides, plus preheating area, featuring multistage filtration for improved recovery efficiency.

FULL NITROGEN PROTECTION SYSTEM

Continuous nitrogen charging creates ultra-low oxygen concentration environment, ensuring excellent welding quality with multi-point oxygen content detection and concentration display for multiple temperature areas.

EFFICIENT HOT AIR CIRCULATION HEATING SYSTEM

High stability thermal efficiency with low energy consumption ensures consistent welding quality.

COOLING SYSTEM

Multiple cooling zones with high power cold water system ensure optimal descent slope for each process.

HIGH CLEANLINESS

Special clean room for R&D with thousand level cleanliness, meeting requirements for high cleanliness environments.

Technical Specifications

Parameter	MINI-10N	MINI-12N	MINI-10DN	MINI-12DN
Heating system
Heating zone structure	10 heating zones, 20 heating modules	12 heating zones, 24 heating modules	10 heating zones, 20 heating modules	12 heating zones, 24 heating modules
Heating zone length	3670mm	4390mm	4390mm	4390mm
Heating up time	25min	25min	25min	25min
Outlet Exhaust Diameter, volume	2-Ø145, Exhaust demand 10m³/min x2
Cooling system
Cooling type	Three cooling zones: forced water cooling
Cooling zone length	1250mm
Chiller power	External Water chiller (Optional: connected to customer workshop cooling water)
Conveyor system
Conveyor Type	Chain + mesh belt synchronous transmission
Conveyor Direction	L->R,R->L
Conveyor Height	900±20mm
Component Height	Clearance above 30mm, Clearance below 20mm
Conveyor Speed	300mm-2000mm/min
Guide rail structure	Dust free special hardened guide rail
PCB Width	Min50mm-max400mm (Option: max510mm)	min50mm-max250mm(Dual tracks) min50mm-max450mm(Single track)	Min50mm-max400mm (Option: max510mm)	min50mm-max250mm(Dual tracks) min50mm-max450mm(Single track)
Fixed Rail Mode	Front rail Fixed(Option: Rear Rail Fixed)	The front and rear guide rails are fixed, and the middle two guide rails can be movable.	Front rail Fixed(Option: Rear Rail Fixed)	The front and rear guide rails are fixed, and the middle two guide rails can be movable.
Control system
Power	AC3Ø 5W 380V 50/60HZ
Total Power	96KW	117KW	96KW	117KW
Startup Power	38KW	42KW	38KW	42KW
Normal consumption	10KW	12KW	11KW	13KW
Temp Control Range	Room temperature to 320℃
Control type	PC+PLC Control system
Temp Control accuracy	±1℃	±1℃	±1℃	±1℃
PCB Temp Deviation	±1℃	±2℃	±1℃	±2℃
Data Storage	Process Data and status storage
Power Outage Protection	Equipped with UPS
Operation Interface	Windows Chinese simplified, English online free switching
N2 area	Full nitrogen filling
MES communication protocol	Standard
Computer	Commercial computer
Machine Parameter
Dimension(LxWxH)	6400x1580x1650mm	7120x1580x1650mm	640017101650mm	712017101650mm
Weight	2500-2700kg	3000-3200kg	2900-3100kg	3500-3700kg
Flux recovery system	Standard
Color	Bright wrinkled white

Installation Requirements

Power requirements:

Three phase five wire: voltage 380V, frequency 50/60HZ
Wire diameter above 25mm², leakage protection switch 160A, leakage protection switch leakage capacity 150-200mA

Ground requirements:

The ground is required to withstand a pressure of 1000kg/m².

External ventilation requirements:

Air duct Ø145mm, ventilation volume 15-20M³/min.
