20 Heating Modules Reflow Oven 10KW 10 Zones Hot Air Reflow Oven

Brand Name:	Suneast
Model Number:	UXT-810/810N｜UXT-812/812N
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Reflow Soldering Oven

Model:

UTX-810/UTX-810N

Dimension:

6400(L)*1580(W)*1650(H)mm

Weight:

2500-2700kg

Heating Zone Structure:

10 Heating Zones, 20 Heating Modules

PCB Width:

Min50mm-max400mm (optional With Max510mm)

Component Height:

Top Side Clearance 30mm, Bottom Side Clearance25mm

Power:

AC3Ø 5W 380V 50/60HZ

Normal Running:

Temp Control Range:

Room Temperature To 320℃

Temp Control Accuracy:

Customizable:

Highlight:

wave multi module combined selective soldering

selective wave soldering multi module combined

soldering multi module combined selective wave

Product Description

20 Heating Modules Reflow Oven 10KW 10 Zones Hot Air Reflow Oven

Product Overview

The UXT Series Reflow Machine Equipment offers low energy consumption while providing high-performance soldering capabilities for PCB assembly. This industrial-grade reflow oven is designed for precision temperature control and efficient operation across various electronic manufacturing applications.

Key Specifications

Attribute	Value
Name	Reflow Soldering Oven
Model	UTX-810/UTX-810N
Dimension	6400(L)1580(W)1650(H)mm
Weight	2500-2700kg
Heating zone structure	10 heating zones, 20 heating modules
PCB Width	Min50mm-max400mm (optional with max510mm)
Component Height	Top side clearance 30mm, bottom side clearance25mm
Power	AC3Ø 5W 380V 50/60HZ
Normal running	10KW
Temp Control Range	Room temperature to 320℃
Temp Control Accuracy	±1℃
Customizable	Yes

Advanced Features

High efficiency: Optimized heat energy distribution with minimal absorption difference between small and large components
Thermal insulation: Advanced furnace structure reduces surface temperature and heat loss
Precision control: Imported PLC controller ensures ±1℃ temperature accuracy
Durable construction: Hardened double-sided guide rails with 50% cost savings
Easy maintenance: Modular rosin recycling system with online maintenance capability
Patented airflow: Hot air convection system for faster heat compensation
Monitoring: Built-in furnace temperature monitoring with optional curve generation
Data integration: Supports MES system connectivity for traceability

System Components

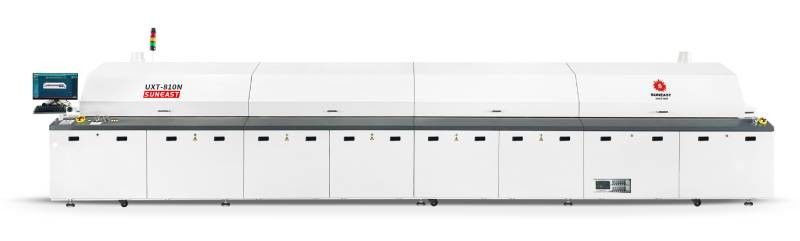

Overall view of the reflow oven showing the complete industrial design

Modular heating system designed for easy maintenance and cleaning

Dual-mode width adjustment with emergency manual transmission

Special transmission design ensures stable PCB movement

Advanced control system with powerful functionality

Technical Parameters

Model No	UTX-810/UTX-810N	UTX-812/UTX-812N	UTX-810/UTX-810N Dual tracks	UTX-812/UTX-812N Dual tracks
Heating system
Heating zone structure	10 heating zones, 20 heating modules	12 heating zones, 24 heating modules	10 heating zones, 20 heating modules	12 heating zones, 24 heating modules
Heating zone length	3670mm	4390mm	3670mm	4750mm
Warming up time	25min	25min	25min	25min
Outlet diameter, Displacement	2-Ø145,Exhaust demand 10m³/min x2
Cooling system
Cooling type	Three cooling zones: forced water cooling
Cooling zone length	1250mm
Power of the chiller	5P Water chiller
Conveyor system
PCB Width	Min50mm-max400mm (optional with max510mm)	Adjustable width for dual track min50mm-max250mm Adjustable width for single track min50mm-max450mm	Min50mm-max400mm (optional with max510mm)	Adjustable width for dual track min50mm-max250mm Adjustable width for single track min50mm-max450mm
Conveyor Direction	L->R,R->L
Conveyor Height	900±20mm		900±20mm
Fixed Rail Side	Front rail Fixed(Option: Rear Rail Fixed)		The front and rear guide rails are fixed, and the middle two guide rails are movable
Conveyor Type	Chain + mesh belt with synchronous transmission
Component Height	Top side clearance 30mm,bottom side clearance25mm
Conveyor Speed	300mm-2000mm/min
Guide rail structure	Dust free special hardening guide rail
Control system
Power	AC3Ø 5W 380V 50/60HZ
Total Power	96KW	117KW	96KW	117KW
Start Up Power	38KW	42KW	38KW	42KW
Normal running	10KW	12KW	11KW	13KW
Temp Control Range	Room temperature to 320℃
Control type	PC+PLC Control system
Temp Control Accuracy	±1℃		±1℃
PCB Temp Deviation	±1℃		±2℃
Data Storage	Process Data and status storage
Power-off Protection	Equipped UPS
Operation Interface	Windows Chinese simplified, English online free switching
N2 area	Full nitrogen filling(The model with "N" refers to the nitrogen model)
MES communication protocol	Standard
Computer	Commercial PC
General
Dimension(LxWxH)	6400x1580x1650mm	7120x1580x1650mm	640017101650mm	712017101650mm
Weight	2500-2700kg	3000-3200kg	2900-3100kg	3500-3700kg
Flux recovery system	Standard
Machine Color	Bright wrinkled white

Installation Requirements

1. Power requirements:
①Three phase five wire: voltage 380V, frequency 50/60HZ;
②Wire diameter above 25mm², leakage protection switch 160A, leakage protection switch leakage capacity 150-200mA.

2. The ground is required to withstand a pressure of 1000kg/m².

3. External ventilation requirements: air duct Ø145mm, ventilation volume 15-20M³/min.

Tags:
