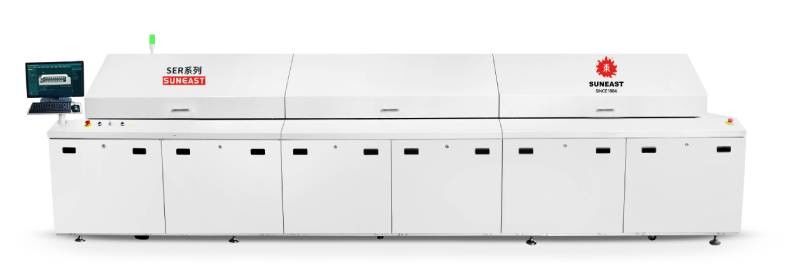

Nitrogen Reflow Soldering Equipment 50mm-400mm SMT Reflow Soldering Machine

Brand Name:	Suneast
Model Number:	SER-708AH\|SER-710AH\|SER-712AH
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Reflow Soldering Oven

Model:

SER-708AH

Dimension:

5055(L)*1372(W)*1515(H)mm

Weight:

2000-2200kg

Total Power:

Running Power:

7.5KW

Heating Zone:

8 Heating Zones，16 Heating Modules

Width:

Min50mm-max400mm

Temp Control Accuracy:

PCB Temp Deviation:

Temperature Range:

Room Temp To 320℃

Customizable:

Highlight:

multi module wave soldering combined selective

selective wave soldering combined multi module

multi module selective soldering combined wave

Product Description

Nitrogen Reflow Soldering Equipment 50mm-400mm SMT Reflow Soldering Machine

Product Specifications

Attribute	Value
Name	Reflow Soldering Oven
Model	SER-708AH
Dimension	5055(L)1372(W)1515(H)mm
Weight	2000-2200kg
Total Power	57KW
Running Power	7.5KW
Heating Zone	8 Heating Zones, 16 Heating modules
Width	min50mm-max400mm
Temp Control accuracy	±1℃
PCB Temp Deviation	±1℃
Temperature Range	Room temp to 320℃
Customizable	Yes

Product Overview

SER Series Nitrogen Reflow Soldering Ovens provide high-performance SMT assembly solutions for various industries including consumer electronics, automotive electronics, aerospace, and industrial control systems. This equipment heats PCBs after component placement, melting solder paste to create secure bonds between components and circuit boards.

Key Features

High heat energy: Optimized thermal efficiency with sufficient energy supply for maximum productivity in short heating zones
Low energy consumption: Verified design delivers the lowest energy consumption with excellent repeatability results
Thermal equalization: Minimizes heat absorption differences between components of varying sizes
Large capacity: Handles PCBs up to 550mm in width with single track configuration

Manual + electric width adjustment with emergency transmission

Stable anti-deformation conveyor system

Adjustable central support prevents PCB deformation

Modular design with front/rear air return

Optional nitrogen closed-loop control

Optional full nitrogen filling

Online maintenance rosin recovery

Dual cooling zone configuration

Advanced cooling system with adjustable display

Built-in temperature profile testing

Technical Specifications

Model No	SER-708AH	SER-710AH	SER-712AH	SER-706AH	SER-704AH
Heating System
Heating Zone	8 Heating Zones, 16 Heating modules	10 Heating Zones, 20 Heating modules	12 Heating Zones, 24 Heating modules	6 Heating Zones, 12 Heating modules	4 heating zones, 8 heating modules
Heating Length	2950mm	3670mm	4350mm	2230mm	1510mm
Cooling Type	Double cooling: enforced air cooling/water cooling (Optional: three cooling zones)			Double cooling: enforced air cooling/water cooling
Conveyor System
Product Width	min50mm-max400mm
Conveying Direction	L->R,R->L
Inlet Height	900±20mm
Fixed Rail Side	Front rail Fixed(Option:Rear Rail Fixed)
Conveyor Type	Chain+mesh belt synchronous transmission
Component Height	Clearance based on the rail:above 30mm,below 20mm
Conveying Speed	300mm-1500mm/min
Central support system (optional)	min60mm-max400mm
Control System
Power Supply	AC3Φ,5W,380V,50/60HZ
Total Power	57KW	71KW	89KW	45KW	34KW
Startup Power	30KW	35KW	40KW	30KW	20KW
Running Power	7.5KW	9.5KW	11.5KW	6KW	5KW
Temperature Range	Room temp to 320℃
Control Type	PC+PLC Control System
Rail Width Adjusting Mode	Electric+Manual
Temp Control accuracy	±1℃
PCB Temp Deviation	±1℃
Data Storage	Process Data and status storage
Power Outage Protection	Equipped with UPS
Operation Interface	Windows Chinese simplified,English online free switching
General
Dimension(L×W×H)	505013721515	577513721515	649513721515	433513721515	361513721515
Weight	2000-2200kg	2000-2200kg	2800-3000kg	1600-1800kg	1100-1200kg
Color	Bright wrinkled white

Installation Requirements

1. Power requirements: Three phase five wire: voltage 380V, frequency 50/60HZ; Wire diameter above 25mm², leakage protection switch 160A, leakage protection switch leakage capacity 150-200mA.

2. The ground is required to withstand a pressure of 1000kg/m².

3. External ventilation requirements: air duct Ø145mm, ventilation volume 15-20M³/min.
