8 Zone Vacuum Reflow Oven for Electronics

Reflow Soldering Oven
December 29, 2025
Category Connection: Reflow Soldering Oven
Chat Now Contact Us
Tags:
#SMT reflow machine #surface mount reflow oven #SMT vacuum reflow oven
Brief: Observe the step-by-step operation and see practical examples of usage. This video provides a detailed walkthrough of the 8 Zone Vacuum Reflow Oven Machine, showcasing its high-temperature soldering process for PCBs. You'll see how the machine's 8 heating zones and patented hot air system work together to melt solder paste and bond components reliably in high-volume production environments.
Related Product Features:
  • Features 8 heating zones with 16 modules for precise temperature control and uniform heating across PCBs.
  • Equipped with a high vacuum system for reliable reflow soldering, minimizing voids and improving joint quality.
  • Includes durable, interchangeable double-sided rails with special hardening for long-lasting performance.
  • Patented hot air system ensures efficient heat compensation and stable thermal profiles during operation.
  • New flux recovery system with a full modular design allows for easy maintenance and reduced downtime.
  • Multi-layer heat insulation furnace structure reduces the working environment temperature for operator comfort.
  • Stainless steel belt chain with guard provides anti-clamp protection and smooth conveyor operation.
  • Customizable configurations available to suit specific production needs and PCB dimensions.
FAQs:
  • What are the main applications for this 8 Zone Vacuum Reflow Oven?
    This reflow oven is widely used in consumer electronics, lighting, automotive electronics, communication equipment, industrial control, aerospace, energy industry, and other electronic product manufacturing fields for high-volume PCB soldering.
  • What is the temperature control accuracy of this machine?
    The machine maintains a temperature control accuracy of ±1°C, ensuring precise and consistent heating for reliable solder reflow processes.
  • Can this reflow oven handle different PCB sizes?
    Yes, it accommodates product widths from a minimum of 50mm to a maximum of 400mm, with component height clearances of above 30mm and below 25mm from the rail.
  • What power supply and installation requirements are needed?
    It requires a three-phase, five-wire power supply at 380V, 50/60Hz, with a wire diameter above 25mm² and a 160A leakage protection switch. The installation site must have a ground capable of withstanding 1000kg/m² pressure.
Related Videos

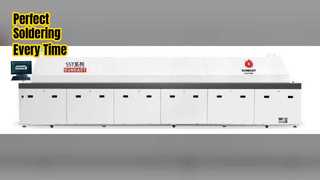

Suneast Reflow Oven Precision Soldering 00:03

Suneast Reflow Oven Precision Soldering
Reflow Soldering Oven
December 29, 2025

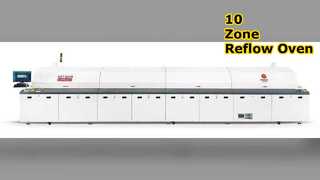

10 Zone Reflow Oven Precision Soldering 00:03
