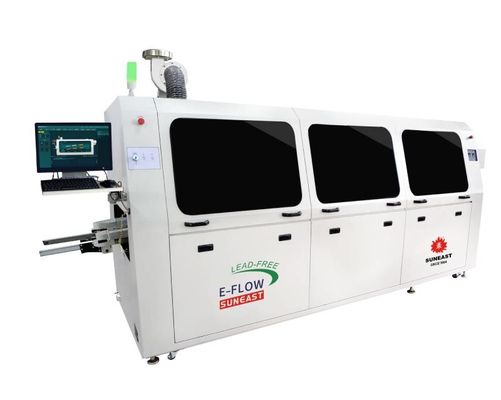

Flexible Modular Mini Wave Soldering Lead Free Wave Soldering Equipment

Brand Name:	Suneast
Model Number:	E-FLOW
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Wave Soldering Machine

Model:

E-FLOW-350

Dimension:

4350(L)*1420(W)*1750(H)mm

Weight:

Approx.1600kg

Power Supply:

3PH 380V 50HZ

Running Power:

Approx.8KW

Control System:

PC+PLC

Solder Pot Heating Power:

13.5KW

Max Solder Pot Temperature:

Preheating Zone Number:

Exhausting:

Top Exhaust

Customizable:

Highlight:

Selective solder machine multi module

multi module Selective solder machines

Selective solder machines multi module

Product Description

Flexible Modular Mini Wave Soldering Lead Free Wave Soldering Equipment

Product Specifications

Name	Wave Soldering Machine
Model	E-FLOW-350
Dimension	4350(L)1420(W)1750(H)mm
Weight	Approx.1600kg
Power Supply	3PH 380V 50HZ
Running Power	Approx.8KW
Control System	PC+PLC
Solder Pot Heating Power	13.5KW
Max Solder Pot Temperature	300℃
Preheating Zone Number	3
Exhausting	Top exhaust
Customizable	Yes

Product Overview

E-FLOW Series Flexible Modular Lead-free Wave Soldering Machine features four major improvements for enhanced performance and durability:

Key Improvements

Conveyor system: Anti-wearing material structure for extended operational lifetime
Preheating system: Optimized hot air circulation for stable, even temperature distribution
Exhausting system: Innovative separate design for easier maintenance
Built-in selective spraying unit (option): Synchronous belt, ball screw, and linear guide rail system for precise X/Y direction movement with step motor control

Advanced Features

Conveying system: Direct buffering structure with special stainless steel chain and aluminum alloy rail design
Preheating system: Drawer-type module with energy-saving design, infrared/hot air convection combination, ±2℃ temperature control accuracy
Flux system: Precision control valve for digital regulation, stepping motor nozzle control, automatic pressure supply
Solder pot: Cast iron construction with anti-corrosion ceramic coating and dual low flow rate nozzles
Cooling system: Adjustable air cooling rate of 4-6℃/s
Control system: PC+PLC with Windows 10 interface, Chinese/English operation, auto-saving profiles and data

Applications

Wave soldering equipment is essential for soldering through-hole components on printed circuit boards across multiple industries including:

Consumer electronics
Communication equipment
Automotive electronics
Medical equipment
Industrial automation
Energy systems

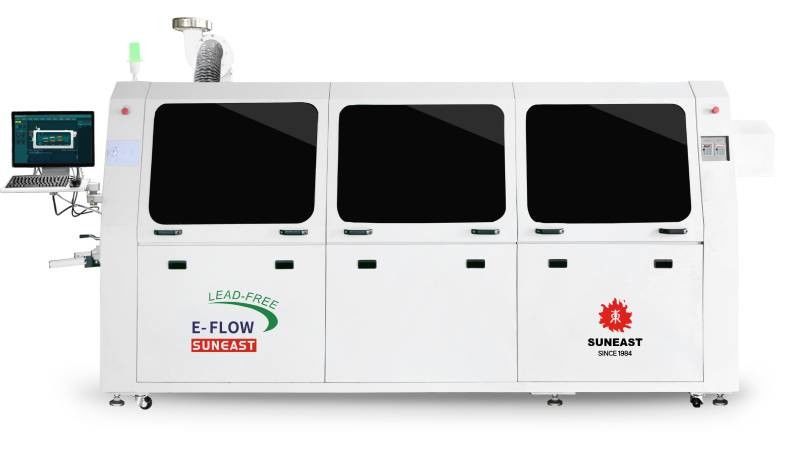

E-FLOW Series Wave Soldering Machine

System Components

01 LCD
02 Buffer system
03 Auto-supplying Flux system
04 Exhaust fan
05 Flux spraying system
06 Pre-heater
07 Solder pot lifting unit
08 Dual wave solder pot
09 Cooling system
10 Angle adjustment controller
11 Finger cleaning system
12 Conveyor system

Built-in selective spraying device (Option)

Top exhausting and filtering system

Forced cooling system

Lead-free processing nozzle

Flexible preheating system combination

Heavy-duty conveying system

Technical Parameters

Parameter	E-FLOW	E-FLOW-450	E-FLOW-610
Dimension (LxWxH)	4350x1420x1750mm	4350x1520x1750mm	4350x1690x1750mm
Weight	Approx.1600kg	Approx.1750kg	Approx.1950kg
Power Supply	3PH 380V 50HZ	3PH 380V 50HZ	3PH 380V 50HZ
Operation Power	Approx.8KW	Approx.8.5KW	Approx.11KW
Preheating Zones	3	3	3
PCB Width	50-350mm	50-450mm	50-610mm
Solder Pot Capacity	Approx.480kg	Approx.550kg	Approx.640kg

Installation Requirements

Power requirements:

Three phase five wire: voltage 380V, frequency 50/60HZ
Wire diameter requirement: 16mm² with 125A leakage protection switch (150-200mA capacity)

Ground requirements: Must withstand pressure of 1000kg/m²

External air exhaust requirements:

Spray: air duct Ø250mm, exhaust air volume 30M³/min
Tin furnace outlet Ø250 and tail cover outlet Ø150 exhaust air volume: about 15M³/min
