Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine

Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine

Brand Name: Suneast
Model Number: ETS-300|300E
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Name:
Wave Soldering Machine
Model:
ETS-300
Dimension:
3385(L)*1240(W)*1540(H)mm
Weight:
Approx.1500kg
Power Supply:
3PH 380V 50HZ
Operation Power Consumption:
7KW
Control System:
PC+PLC
Preheating Mode:
IR
Control Mode:
PID
Preheating Zone Quantity:
2
Heater Power:
9KW
Solder Pot Temperature:
300°C
Solder Pot Capacity:
Approx.350KG
Customizable:
Yes
Highlight:

Combined multi module Selective Wave Soldering

,

Combined Selective multi module Wave Soldering

,

Selective Combined multi module Wave Soldering

Product Description
Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine
Product Overview

The ETS-300 Flexible Modular Lead-free Wave Soldering Machine is a compact, efficient solution for electronic manufacturing processes. With its advanced PC+PLC control system and IR preheating technology, it delivers precise temperature control and reliable performance.

Key Specifications
Attribute Value
Model ETS-300
Dimension 3385(L)*1240(W)*1540(H)mm
Weight Approx. 1500kg
Power Supply 3PH 380V 50HZ
Operation Power 7KW
Control System PC+PLC
Solder Pot Capacity Approx. 350KG
Customizable Yes
Key Features
  • Compact design: Small footprint ideal for space-constrained environments
  • Advanced control: PC+PLC control system for precise operation
  • Efficient preheating: IR preheating with uniform temperature distribution
  • Stable operation: Step motor control spraying for reliability
  • Cost-effective: Small solder pot reduces material costs
System Components
  • Conveying system: Stainless steel chain transmission with aluminum alloy rail
  • Preheating system: Drawer-type IR preheating with ±2℃ accuracy
  • Flux spraying: Precision control valve with stepping motor movement
  • Solder pot: Cast iron construction with anti-corrosive treatment
  • Cooling system: Forced air cooling for efficient operation
Applications

This wave soldering equipment is designed for soldering through-hole components on printed circuit boards. It serves various industries including:

  • Consumer electronics
  • Communication equipment
  • Automotive electronics
  • Medical equipment
  • Industrial automation
Product Images
Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine 0

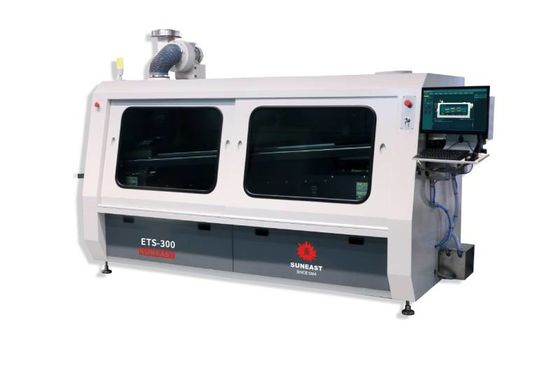

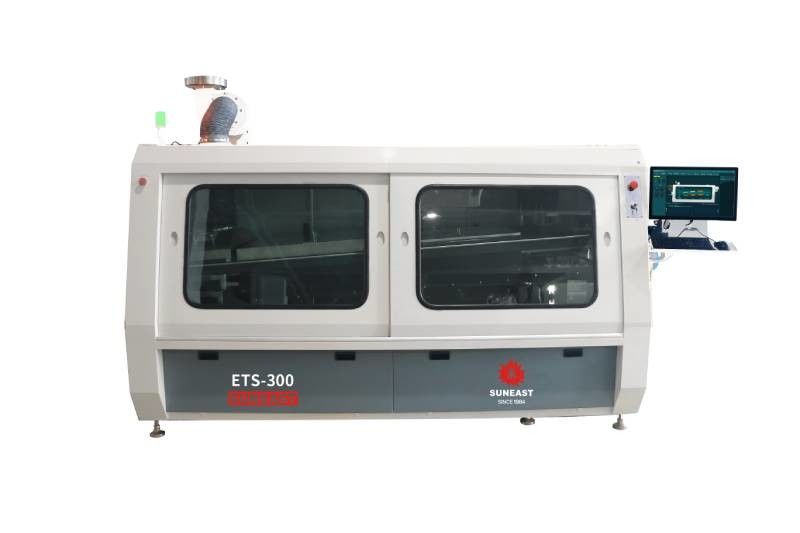

Overall machine view
Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine 1
Built-in Spraying Device
Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine 2
Drawer type preheating unit
Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine 3
Linkage Inlet Buffering
Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine 4
Solder Pot Construction
Technical Specifications
Parameter ETS-300 ETS-300E
Dimension (LxWxH) 3385x1240x1540mm 3385x1190x1540mm
Weight Approx. 1500kg Approx. 1450kg
Operation Power 7KW 6.7KW
Preheating Temperature Room temp~200℃ Room temp~200℃
Solder Pot Temperature 300℃ 300℃
Conveyor Speed 500~1800mm/min 500~1800mm/min
Installation Requirements
  • Three phase five wire: 380V, 50/60HZ power supply
  • 16mm² wire diameter with 125A leakage protection switch
  • Floor must withstand 1000kg/m² pressure
  • External exhaust requirements: Ø250mm air duct with 30M³/min capacity
