PCB Board Soldering Machine DIP Tech Lead Free Wave Soldering

Brand Name:	Suneast
Model Number:	UXT-350｜450｜610
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Wave Soldering Machine

Model:

UXT-350

Dimension:

4350(L)*1480(W)*1750(H)mm

Weight:

Approx.1800Kg

Running Power:

Preheating Zone Quantity:

Preheating Mode:

Hot Air Convection/IR

Width:

50-350mm

Lead/Lead Free:

Lead Free

Solder Pot Capacity:

480kg

Purpose:

Connect Electronic Components With Circuit Boards

Customizable:

Highlight:

Multi module selective solders

Multi module select soldering

select soldering Multi module

Product Description

PCB Board Soldering Machine DIP Tech Lead Free Wave Soldering

Product Specifications

Name	Wave Soldering Machine
Model	UXT-350
Dimension	4350(L)1480(W)1750(H)mm
Weight	Approx.1800Kg
Running Power	8KW
Preheating Zone Quantity	3
Preheating Mode	Hot air Convection/IR
Width	50-350mm
Lead/Lead free	Lead free
Solder Pot Capacity	480kg
Purpose	Connect electronic components with circuit boards
Customizable	Yes

UXT Series Lead-free Wave Soldering Equipment

The UXT series wave soldering machine features modular, digital, and humanized design to meet diverse customer requirements. With superior functionality, performance stability, reliability, and security, it reduces operating costs while ensuring high-quality production output. This equipment represents the pinnacle of wave soldering technology and is the preferred choice for industrial applications.

Key Features

Section floating transportation system prevents guide rail deformation with new titanium alloy double hook fingers
Integrated spray fluxer module with precision nozzle for uniform coating and water flux compatibility
Three-zone preheating system with micro-hot air + infrared heating for stable temperature control
Optional forced air cooling system (water chiller available)
Special corrosion-resistant solder pot material with ±2℃ temperature precision
Windows 10 OS with intelligent Chinese/English software for parameter control and remote monitoring

Application Range

Wave soldering equipment is designed for through-hole component assembly on printed circuit boards. It is widely used in consumer electronics, communication equipment, appliances, power supplies, automotive electronics, medical devices, industrial automation, and energy industries.

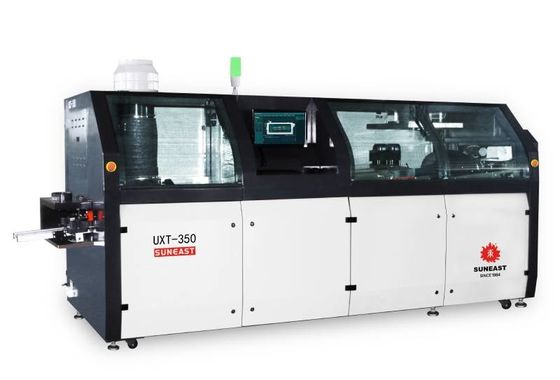

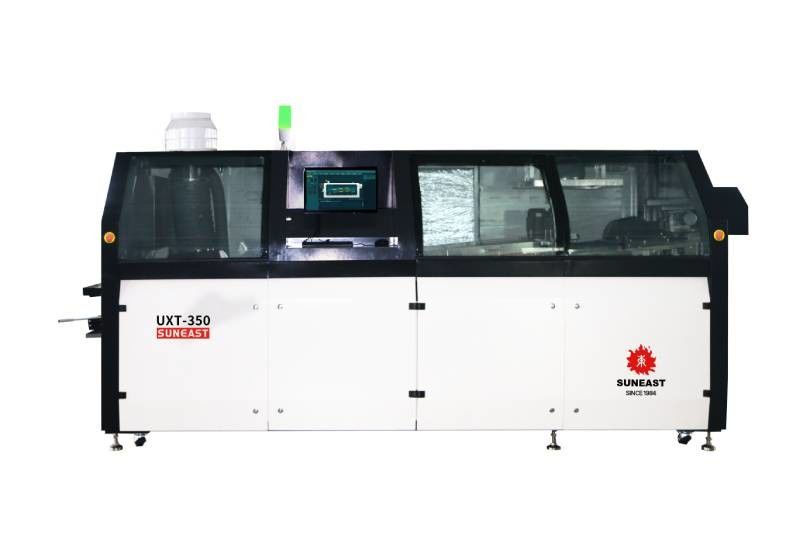

UXT-350 Wave Soldering Machine

System Components

Buffer system
Flux supply system
Exhaust fan
Flux spray system
LCD control panel
Pre-heater
Solder pot lifting unit
Dual wave solder pot
Cooling system
Angle adjustment controller
Finger cleaning system
Conveyor system

Integrated spray fluxer unit

Modular preheating zones

Corrosion-resistant solder pot

Width adjustment control

Solder pot lifting mechanism

Technical Specifications

Parameter	UXT-350	UXT-450	UXT-610
Dimension (LxWxH mm)	435014801750	435015801750	435017401750
Weight	Approx.1800kg	Approx.1950kg	Approx.2150kg
Power Supply	3PH 380V 50HZ	3PH 380V 50HZ	3PH 380V 50HZ
Startup Power	32KW	32KW	45KW
Operation Power	Approx.8KW	Approx.8.5kW	Approx.11KW
Control System	PC+PLC	PC+PLC	PC+PLC
PCB Width (mm)	50-350	50-450	50-610
Solder Pot Capacity	Approx.480KG	Approx.550KG	Approx.640KG

Installation Requirements

Power requirements:
① Three phase five wire: voltage 380V, frequency 50/60HZ
② Wire diameter requirement: 16mm² with 125A leakage protection switch (150-200mA capacity)

Ground requirements:
Must withstand pressure of 1000kg/m²

External air exhaust requirements:
① Spray: Ø250mm air duct with 30M³/min exhaust capacity
② Tin furnace outlet Ø250 and tail cover outlet Ø150 with 15M³/min exhaust capacity

Tags:

mini wave soldering machine

automatic wave soldering machine

heat wave soldering machine
