Tunnel Wave Soldering System Full Sealing Nitrogen Filled Automatic Wave Soldering Machine

All Category

Selective Wave Soldering Machine

SMT Peripheral Equipment

Ms. Yang

yanglin@suneast.com.cn

+86 13714780575

Contact Now

Tunnel Wave Soldering System Full Sealing Nitrogen Filled Automatic Wave Soldering Machine

Brand Name:	Suneast
Model Number:	PERFECTFLOW 350/450/610
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Wave Soldering Machine

Model:

PERFECTFLOW 350

Dimension:

6000(L)*1420(W)*1750(L)mm

Weight:

Approx.1850kg

Running Power:

Approx.8.5KW

Preheating Mode:

Hot Air Convection/IR

Preheating Zone Length:

1800mm

Width:

50-350mm

Conveying Speed:

500~1800mm/min

Nitrogen Purity:

99.999%

Nitrogen Consumption:

Approx.20m³/h

Customizable:

Highlight:

Multi module Selective soldering system

Multi module selective soldering equipments

Multi modules selective solder

Product Description

Tunnel Wave Soldering System Full Sealing Nitrogen Filled Automatic Wave Soldering Machine

Product Overview

The PERFECTFLOW series is a tunnel-type, fully sealed nitrogen-filled wave soldering system featuring innovative segmented conveying technology and world-first welding zone sealing solution. This advanced equipment enhances welding process quality while solving common issues like jamming and maintenance difficulties.

Key Specifications

Model:

PERFECTFLOW 350

Dimensions:

6000(L)×1420(W)×1750(H)mm

Weight:

Approx. 1850kg

Running Power:

Approx. 8.5KW

Conveying Speed:

500~1800mm/min

Nitrogen Purity:

99.999%

Advanced Features

Conveyor System: Segmented floating structure prevents guide rail deformation with flexible bottom space configuration
Preheating System: Drawer-type module design with IR/hot air convection heating and PID temperature control
Soldering System: Cast iron solder pot with anti-corrosion treatment and motorized positioning
Nitrogen System: Patented welding zone sealing with oxygen monitoring
Control System: PC+PLC with Windows 10 interface, automatic data storage, and multiple alarm functions

Application Range

This wave soldering equipment is designed for through-hole component assembly on printed circuit boards, serving industries including consumer electronics, automotive electronics, medical equipment, industrial automation, and power supply manufacturing.

System Components

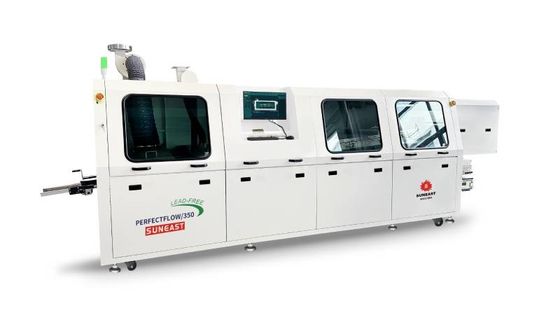

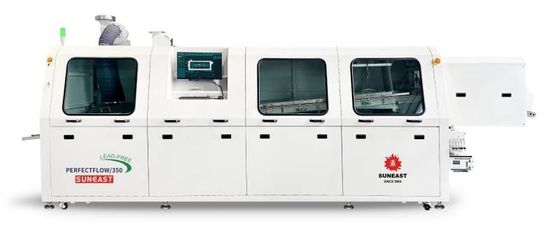

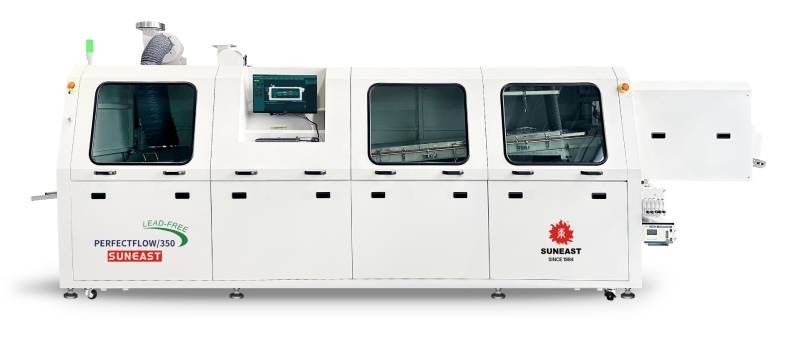

Overall System Diagram

Integrated Spray Fluxer Unit

Adjustable Rail Angle

Configurable Bottom Space

Oxygen Monitoring System

Transparent Viewing Window

Motorized Solder Pot

Technical Specifications

Parameter	PERFECTFLOW/350	PERFECTFLOW/450	PERFECTFLOW/610
Dimensions (L×W×H)	6000×1420×1750mm	6000×1520×1750mm	6000×1690×1750mm
Weight	≈1850kg	≈2050kg	≈2300kg
Normal Running Power	≈8.5KW	≈9KW	≈11KW
Preheating Zone Length	1800mm	1800mm	1800mm
Width Range	50-350mm	50-450mm	50-610mm
Solder Pot Capacity	≈480kg	≈550kg	≈640kg
Nitrogen Consumption	≈20m³/h	≈22m³/h	≈25m³/h

Installation Requirements

Power Requirements: Three-phase five-wire system (380V, 50/60Hz) with 16mm² wire diameter and 125A leakage protection switch

Floor Requirements: Must withstand 1000kg/m² pressure

Ventilation Requirements: Ø250mm exhaust duct with 30M³/min capacity for spray zone, 15M³/min for solder pot exhaust
