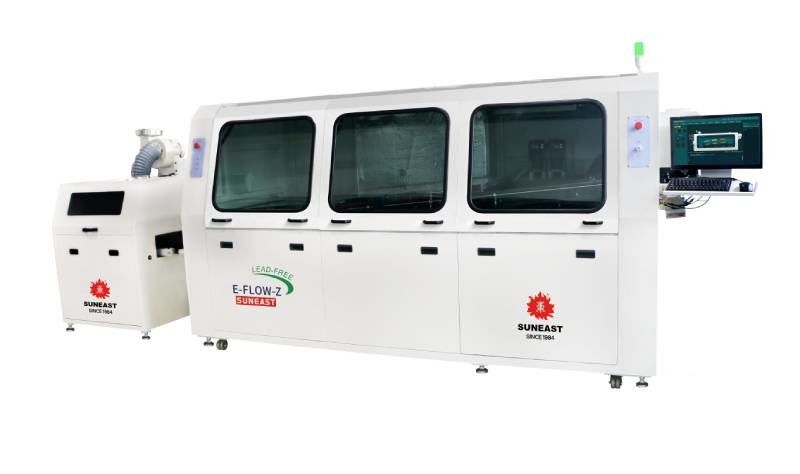

External Spray Suneast Wave Soldering Machine 8KW Lead Free Wave Soldering Machine

Brand Name:	Suneast
Model Number:	E-FLOW-Z
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Wave Soldering Machine

Model:

E-FLOW-Z(External Spraying)

Dimension:

5050(L)*1420(W)*1750(H)mm

Weight:

Approx.1850kg

Power Supply:

3PH 380V 50HZ

Running Power:

Approx.8KW

Preheating Zone Quantity:

PCB Width:

50~350mm

Conveyor Height:

750±20mm

Heater Power:

13.5KW

Solder Pot Temperature:

Customizable:

Highlight:

Multi module selective solders

Multi module select solder machine

multi modules Selective solder

Product Description

External Spray Suneast Wave Soldering Machine 8KW Lead Free Wave Soldering Machine

Product Specifications

Model	E-FLOW-Z (External spraying)
Dimensions	5050(L) × 1420(W) × 1750(H) mm
Weight	Approx. 1850kg
Power Supply	3PH 380V 50HZ
Running Power	Approx. 8KW
PCB Width	50~350mm
Solder Pot Temperature	300℃
Customizable	Yes

Key Features

External spraying unit: Eliminates safety risks and simplifies maintenance
Preheating system: High energy efficiency motor with superior thermal efficiency
Conveying system: Special design ensures smooth operation and prevents finger shaking
Exhausting system: Upper and lower exhausting with air knife separation eliminates odor overflow
Exhausting hood system: High efficiency with anti-drip design to prevent quality issues

Technical Characteristics

Direct buffering structure with durable stainless steel chain and aluminum alloy rail
Drawer-type preheating modules with PID temperature control (±2℃ accuracy)
Precision control valves for digital regulation and stepping motor nozzle control
Cast iron solder pot with anti-corrosion ceramic coating and dual nozzles
Adjustable air cooling system (4-6℃/s cooling rate)
PC+PLC control system with Windows 10 interface and auto-save functionality

Applications

Wave soldering equipment is used for soldering through-hole components on printed circuit boards across multiple industries including:

Consumer electronics
Communication equipment
Automotive electronics
Medical devices
Industrial automation
Power supply manufacturing

Overall Machine Diagram

System Components

LCD Control Panel
Conveyor System
Finger Cleaning System
Cooling System
Dual Wave Solder Pot
Solder Pot Lifting Unit
Pre-heater
Angle Adjustment Controller
Buffer System
Flux Spraying System
Exhaust Fan

External Spraying Unit

Top Exhaust System

Cooling System

Lead-Free Nozzle

Preheating System

Conveying System

Technical Specifications

Parameter	E-FLOW-Z	E-FLOW-Z450	E-FLOW-Z610
Dimensions (L×W×H mm)	5050×1420×1750	5050×1520×1750	5050×1690×1750
Weight	≈1850kg	≈2050kg	≈2300kg
Operation Power	≈8KW	≈9KW	≈11KW
PCB Width (mm)	50~350	50~450	50~610
Solder Pot Capacity	≈480kg	≈550kg	≈640kg

Installation Requirements

Power Requirements:

Three phase five wire: 380V, 50/60Hz
Wire diameter: 16mm² with 125A leakage protection switch

Ground Requirements: Must withstand 1000kg/m² pressure

Exhaust Requirements:

Spray: Ø250mm duct with 30M³/min air volume
Tin furnace outlet: Ø250 with ≈15M³/min air volume
