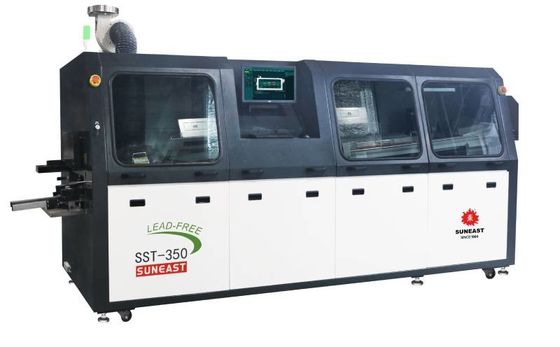

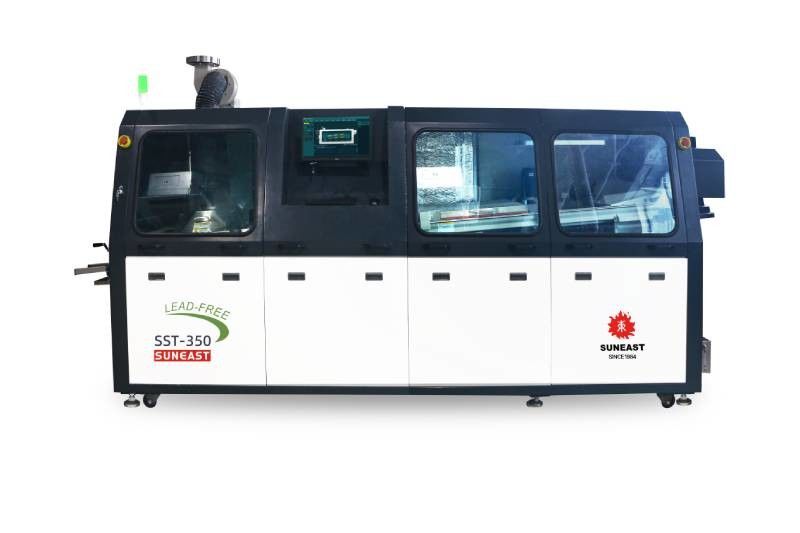

Wave Soldering Machines Flux Spraying PCB Wave Soldering Machine

Brand Name:	Suneast
Model Number:	SST-350
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Wave Soldering Machine

Model:

SST-350

Dimension:

4350(L)*1420(W)*1750(H)mm

Weight:

Approx.1600kg

Start Up Power:

Running Power:

Spraying Movement:

Step Motor

Preheating Mode:

Convection/IR Emitter

Width:

50~350mm

Conveying Angle:

Max Solder Pot Temperature:

Customizable:

Highlight:

Selective Combined Wave multi module Soldering

Combined Selective Wave multi module Soldering

Selective Combined Wave multi module Soldering

Product Description

Wave Soldering Machines Flux Spraying PCB Wave Soldering Machine

Attribute	Value
Name	Wave Soldering Machine
Model	SST-350
Dimension	4350(L)1420(W)1750(H)mm
Weight	Approx.1600kg
Start up Power	33KW
Running Power	8KW
Spraying movement	Step motor
Preheating Mode	Convection/IR emitter
Width	50~350mm
Conveying Angle	4~7°
Max Solder Pot Temperature	300℃
Customizable	Yes

Product Description

SST-350 Flexible Modular Lead free Wave Soldering Equipment Flux Spraying System

SST series is a fully upgraded wave soldering with enhanced modular, digital and humanized design to meet customer needs, with more perfect function, more advanced performance, further improved stability and reliability, the operation and maintenance is more convenient, and the customer operation cost is reduced more.

Features

Conveyor: Direct buffering input structure. Stainless steel chain conveyor, durable and special design for aluminum alloy track. Adopt segment floating structure to prevent from deformation
Pre-heating zones: Design for energy saving and removable modules (drawer design). Any combination of infrared and hot air convection. Use PID control to achieve ±2℃ accuracy. The temperature variation for pre-heating zone and soldering zone is less than≤5℃
Flux spraying system: Managed by digital control. The motion of the spray nozzle is controlled by stepper motor. Flux supply is controlled automatically for optimized effect. Exhausting and filter system installed on the top
The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles
Air cooling system: cooling rate 4-6℃/s (adjustable)
PC+PLC control system. Windows10 operation system with Chinese/English operation interface. Processing profile and data auto saving function. Alarm for detecting the flux and solder level

Application Range

Wave soldering equipment is used to solder through-hole components and circuit boards through high-temperature liquid solder waves on printed boards with pre installed plug-in components. Wave soldering is widely used in the electronic product manufacturing industry, including consumer electronics, communication equipment, household appliances, power supplies, automotive electronics, medical equipment, industrial automation, energy and other industries.

Overall Diagram

01 Buffer system
02 Flux supply system
03 Exhaust fan
04 Flux spray system
05 LCD
06 Pre-heater
07 Dual wave solder pot
08 Solder pot lifting unit
09 Cooling system
10 Angle adjustment controller
11 Finger cleaning system
12 Conveyor system

Built in spraying unit

Top exhausting and filtering System

Forced cooling system

Lead-free processing nozzle

Flexible combination of preheating system

Solder pot is motorized in/out/up/down

Product Parameters

Parameter	Specification
Model NO	SST-350
Dimension:LxWxH(mm)	4350×1420×1750
Weigh	Approx.1600kg
Power Supply	3PH 380V 50HZ
Startup Power	33KW
Operation Power Consumption	8KW
Control System	PC+PLC
Spraying movement	Step motor
Spray Pressure	0.2Mpa~0.4Mpa
Flux Flow Arrange	option
Auto Fill Flux	Standards
Exhaust	Top exhaust
Exhaust Ducting Diameter(mm)	Φ250
Exhaust fan power	750W
Preheating Mode	Convection/IR emitter
Control Mode	PID
Preheating Zone Number	3
Preheating Length(mm)	1800
Preheating Temperature	Room temperature~200℃
Warm-up Time(min)	Appro×.12min(setting:150℃)
PCB Width(mm)	50~350
Conveyor Direction	L->R(Option:R->L)
Conveyor Speed(mm/min)	500~1800
Conveyor Height(mm)	750±20
Available Component Heigh (mm)	Top120,Bottom15
Conveyor Speed Control Mode	Closed loop stepless speed regulation Inverter
Fingers	Spring Pressing Finger/D-40Type Finger/Double-hook Finger/Heavy type double hook finger, Options
Conveyor Angle	4~7°
Type of solder Pot	Motor drive
Solder Pot Material	Casting Iron
Wave Height Adjustment	Digital Control by PC
Cooling Method	Air Cooling Option:Water cooing
Heater Power	13.5KW
Solder Pot Temperature	300°℃
Solder Pot Capacity	Approx.480KG
Wave Drive Power	180W*2 3PH 220VAC
Solder Pot Warm-up Time	Approx.150min(setting:250℃)
Temperature Control Mode	PID
Finger Cleaning System	Brush

Notices

1. Power requirements:

①Three phase five wire: voltage 380V, frequency 50/60HZ;

②The wire diameter requirement is 16mm², with a leakage protection switch of 125A and a leakage capacity of 150-200mA.

2. The ground is required to withstand a pressure of 1000kg/m².

3. External air exhaust requirements:

①Spray: air duct Ø250mm, exhaust air volume 30M³/min;

②The exhaust air volume for the tin furnace outlet Ø250 and the tail cover outlet Ø150 is about 15M³/min.
