Nitrogen Wave Soldering Machine

Wave Soldering Machines
December 29, 2025
Category Connection: Wave Soldering Machines
Chat Now Contact Us
Tags:
#mini wave soldering machine #automatic wave soldering machine #heat wave soldering machine
Brief: Looking for a straightforward way to solve common wave soldering challenges like jamming and maintenance difficulties? This video provides a detailed walkthrough of the PERFECTFLOW series, showcasing its fully sealed nitrogen-filled design, segmented conveyor system, and advanced control features for superior PCB assembly quality.
Related Product Features:
  • Segmented floating conveyor system prevents guide rail deformation and offers flexible bottom space configuration.
  • Drawer-type preheating module with IR/hot air convection heating and precise PID temperature control.
  • Cast iron solder pot with anti-corrosion treatment and motorized positioning for accurate soldering.
  • Patented welding zone sealing with oxygen monitoring ensures high nitrogen purity of 99.999%.
  • PC+PLC control system with Windows 10 interface, automatic data storage, and multiple alarm functions.
  • Designed for through-hole component assembly on PCBs across consumer, automotive, medical, and industrial electronics.
  • Adjustable rail angle and configurable bottom space for versatile PCB handling and processing.
  • Transparent viewing window allows real-time monitoring of the soldering process for quality assurance.
FAQs:
  • What industries is this wave soldering machine suitable for?
    This machine is designed for through-hole component assembly on printed circuit boards, serving industries including consumer electronics, automotive electronics, medical equipment, industrial automation, and power supply manufacturing.
  • How does the nitrogen system improve soldering quality?
    The system features patented welding zone sealing with oxygen monitoring, maintaining nitrogen purity at 99.999% to reduce oxidation and enhance soldering process quality.
  • What are the key features of the conveyor system?
    The conveyor uses a segmented floating structure that prevents guide rail deformation and offers flexible bottom space configuration, solving common issues like jamming and easing maintenance.
  • What power and installation requirements does this machine have?
    It requires a three-phase five-wire system (380V, 50/60Hz) with 16mm² wire diameter, a 125A leakage protection switch, and a floor that can withstand 1000kg/m² pressure.
Related Videos

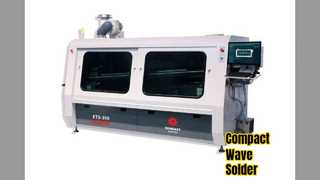

Small Wave Solder Machine Lead Free 380V 00:06

Small Wave Solder Machine Lead Free 380V
Wave Soldering Machines
December 29, 2025

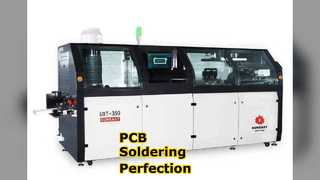

Lead Free Wave Soldering Machine for PCBs 00:06
