This fully automatic semiconductor printer utilizes screen printing technology to apply conductor paste, resistor paste, or dielectric paste onto ceramic substrates. After high-temperature sintering, these materials form a firmly adhered film, enabling the creation of multi-layer interconnected circuits containing resistors or capacitors through repeated printing.

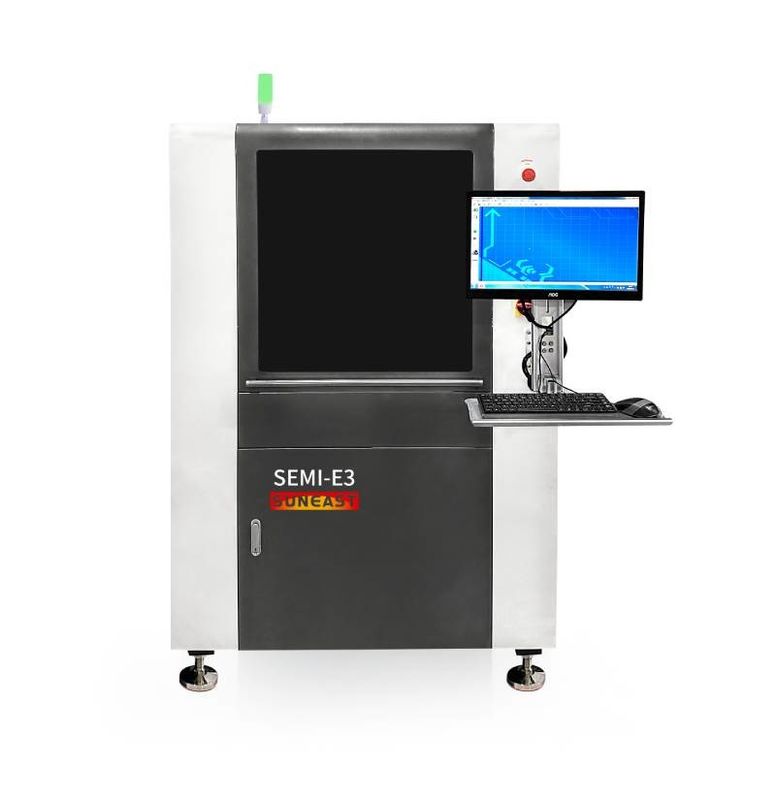

The SEMI-E3 semiconductor printer is designed for precision printing in manufacturing processes for:

• Semiconductor devices and thermal print heads
• Ceramic capacitors, circuits, and filters
• Potentiometers, dielectric antennas, and RFID components
• LTCC, MLCC, and piezoelectric ceramic components
• Various sensors and chip components

• Ergonomic Design: Modern, stable structure meeting human engineering standards
• Smart Control: SPI online function for material replacement and quality control
• User-Friendly Interface: Bilingual (Chinese/English) software with intuitive operation
• Precision Optical System: Enhanced MARK recognition with traceability features
• Dust-Proof Construction: Suitable for thousand-level cleanliness environments
• High Accuracy: Film thickness consistency guaranteed to ±1 micron

• Full servo UVW module with advanced calibration algorithm
• High-precision vacuum adsorption and support mechanism
• Vacuum negative pressure monitoring and breaking functions

• Reduces substrate contamination in high-cleanliness environments
• Three-stage track conveying mechanism improves efficiency

• Gantry dual-drive motion structure for uniform force distribution
• Linear motor drives for enhanced positioning accuracy

• Adjustable screen frame arm with scale for fast setup
• Specialized one-lay one-scrape squeegee with Y-direction adjustment
• Innovative long-side printing method improves force uniformity
