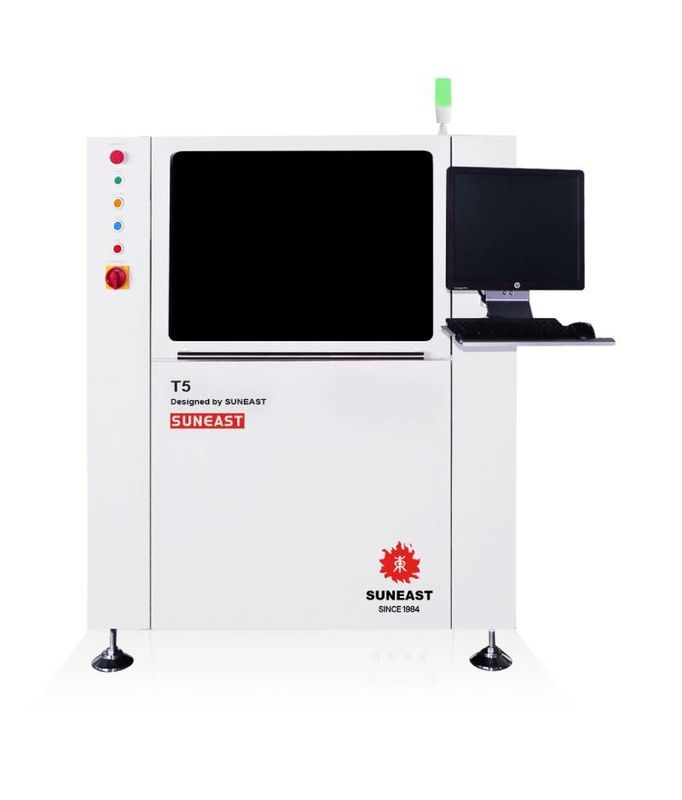

Multifunctional Solder Paste Screen Printer T5 Fully Auto SMT Printing Machine

Brand Name: Suneast
Model Number: T5
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Name:
Screen Printing Machine
Model:
T5
Machine Dimension:
1530(L)*1680(W)*1540(H)mm
Weight:
Approx.950Kg
Min PCB:
50(X)×50(Y) (mm)
Max PCB:
510(X)×510(Y) (mm)
Conveyor Height:
900±40mm
Scraper Pressure:
0~20kg
Positional Accuracy:
±0.01mm
System Language:
Chinese、English
Main Power Supply:
Main Power Supply
Customizable:
Yes
Highlight:

selective multi module combined wave solder

,

combined multi module wave solder selective

,

selective wave soldering multi module combined

Product Description
Multifunctional Solder Paste Screen Printer T5 Fully Auto SMT Printing Machine
Product Overview

The T5 Full Automatic Screen Printer is a multifunctional solder paste printing machine designed for precise application of solder paste on circuit boards (PCBs). This high-precision equipment ensures uniform solder paste distribution for optimal electronic component soldering in SMT surface mount production lines.

Key Features
  • Entirety frame design for stability
  • Multifunctional platform design
  • Visual alignment system for precision accuracy
  • Integrated transport system
  • Independent cleaning structure
  • Squeegee lifting directly connected with screw rod structure
Technical Specifications
Attribute Value
Model T5
Machine Dimension 1530(L)*1680(W)*1540(H)mm
Weight Approx. 950Kg
PCB Size Range Min: 50×50mm, Max: 510×510mm
Conveyor Height 900±40mm
Positional Accuracy ±0.01mm
System Language Chinese, English
Customizable Yes
System Components
  1. Rack module
  2. Lifting module
  3. Platform alignment module
  4. Image capture module
  5. Stencil frame positioning module
  6. Squeegee module
  7. Display module
  8. Cleaning module
  9. Conveyor module
  10. Air and power input
  11. Housing module
Multifunctional Solder Paste Screen Printer T5 Fully Auto SMT Printing Machine 0 Multifunctional Solder Paste Screen Printer T5 Fully Auto SMT Printing Machine 1
Detailed Parameters
Parameter Category Specification
Screen Frame Size 650×420mm to 850×850mm (Thickness: 20-40mm)
Print Speed 5-200mm/sec adjustable
Scraper Pressure 0~20kg
Vision System Germany BASLER camera, 640×480 pixel resolution
Printing Accuracy ±0.025mm
Cycle Time <10s (excluding print and cleaning time)
Power Requirements AC 220V±10% 50/60HZ Single phase, Approx. 3kw
Installation Requirements
  • Gas source: 4.5-6kgf/cm²; Inlet pipe Ø≥8mm
  • Power: single-phase AC 220V±10% 50/60HZ, 4-6mm² power cord with 16A grounded socket
  • Ground pressure requirement: 1000kg/m²
  • Training: 2-3 personnel required for installation and training assessment
