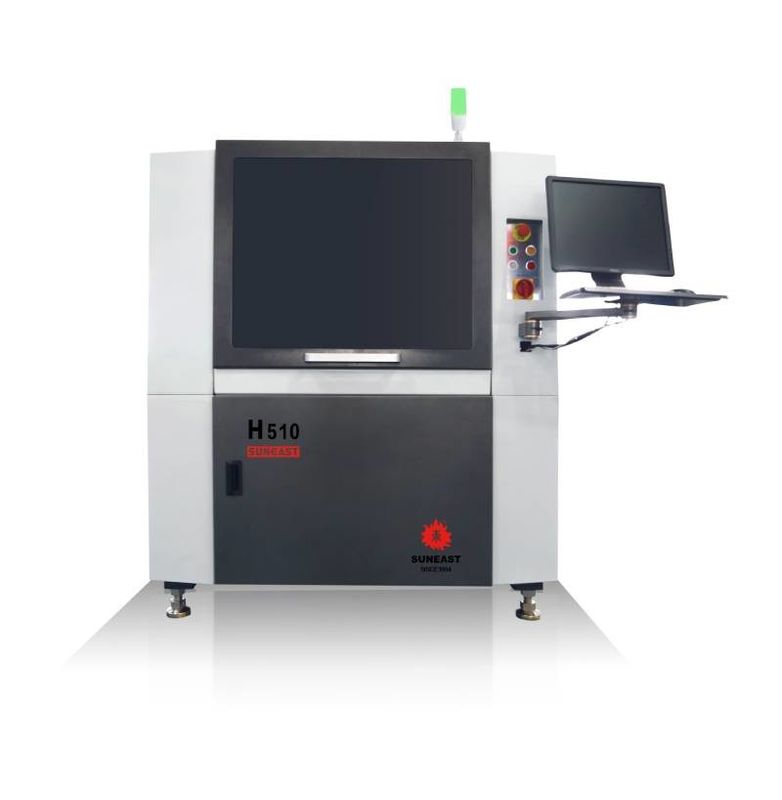

H510 Full Automatic Solder Paste Printer Mechanical Solder Screen Printer

Brand Name:	Suneast
Model Number:	H510
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Screen Printing Machine

Model:

Machine Dimension:

1350(L)*1625(W)*1535(H)mm

Weight:

Approx.1300Kg

Total Power:

Approx.3kw

Main Power Supply:

AC 220V±10% 50/60HZ Single Phase

Main Air Supply:

4.5～6kgf/cm2

Min PCB:

50(X)×50(Y) (mm)

Max PCB:

510(X)×510(Y) (mm)

Edge Distance:

PCB Process Edge ≥2.5mm

Conveyor Belt:

U Type Sync Belt

Print Speed:

5-200mm/s Adjustable

Scraper Pressure:

0~20kg

Positional Accuracy:

±0.01mm

Printing Accuracy:

±0.015mm

Customizable:

Highlight:

pcb loader magazine suneast plc

magazine suneast plc pcb loader

loader magazine suneast plc pcb

Product Description

H510 Full Automatic Solder Paste Printer Mechanical Solder Screen Printer

Product Overview

The H510 Full Automatic Screen Printing Machine is designed for high-precision solder paste application on PCBs. This industrial-grade printer ensures uniform solder paste distribution for superior electronic component soldering quality in SMT production lines.

Key Features

Linear motor technology for high speed and precision
Specialized design for 03015 micro component printing
Advanced mechanical architecture for stability and convenience
Optimized printing head design for exceptional print quality

Technical Specifications

Model	H510
Machine Dimensions	1350(L)×1625(W)×1535(H)mm
Weight	Approx. 1300Kg
Power Requirements	AC 220V±10% 50/60HZ Single phase, Approx. 3kw
PCB Size Range	Min: 50×50mm, Max: 510×510mm
Printing Speed	5-200mm/s adjustable
Positional Accuracy	±0.01mm
Printing Accuracy	±0.015mm

Machine Modules

Machine housing module
Squeegee printing module
Stencil frame positioning module
Platform lifting module
Cleaning module
CCD image capture module
Rail and conveyor module
Three color warning lamp
Display and input device

Detailed Parameters

Parameter Category	Specifications
Print System	Servo motor drive scraper lifting, Steel/rubber scraper options, 60° scraper angle, 0~20kg pressure
Vision System	Germany BASLER camera, Up/under double photo acquisition, 9mm×7mm view range, Mark automatic alignment
Control System	Industrial PC with Windows, Chinese/English interface, SMEMA connection, User authorization system
Cleaning System	Standard dry and wet cleaning, Optional vacuum model, Liquid level auto alarm detection

Optional Features

Pneumatic Top Clamp (standard)
Vacuum Adsorption and unloading for thin PCBs/FPCs
Automatic Positioning of screen frame
SPI close loop system
UPS 15min power off protection
Industry 4.0 capabilities (barcode trace, production analysis)

Installation Requirements

Gas source: 4.5-6kgf/cm²; Inlet pipe Ø≥8mm
Power: Single-phase AC 220V±10% 50/60HZ, 4-6mm² power cord with 16A grounded socket
Ground pressure requirement: 1000kg/m²
Training: 2-3 personnel required for installation learning and assessment
