Intelligent High Precision T9 SMT Solder Paste Printer 2D Check Solder Paste Printer

Brand Name:	Suneast
Model Number:	T9
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Screen Printing Machine

Model:

Machine Dimension:

1400(L)*1630(W)*1525(H)mm

Weight:

Approx.950Kg

Min PCB:

50(X)×50(Y) (mm)

Max PCB:

Standard: 610(X)×510(Y) (mm)

Conveyor Speed:

0~1500mm/sec, Increment 1mm

Print Speed:

5-200mm/s Adjustable

Scraper Pressure:

0~20kg

Positional Accuracy:

±0.01mm

Printing Accuracy:

±0.025mm

Main Power Supply:

AC 220V±10% 50/60HZ Single Phase

Main Air Supply:

4.5～6kgf/cm2

Customizable:

Yes

Highlight:

combined multi module wave solder selective

wave solder multi module combined selective

multi module selective solder combined wave

Product Description

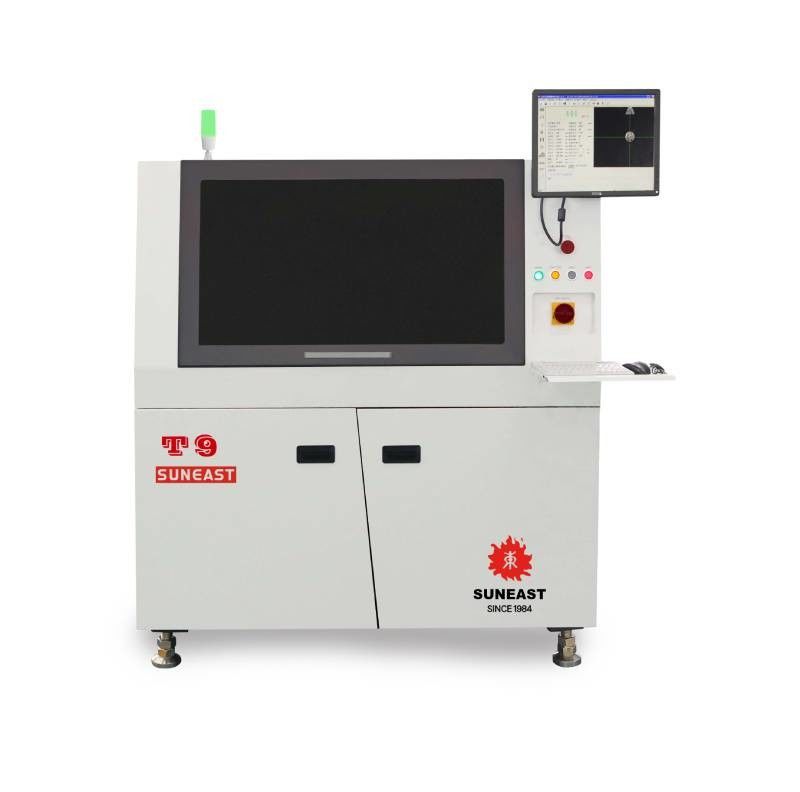

Intelligent High Precision T9 SMT Solder Paste Printer with 2D Check

The T9 SMT solder paste printer is a full automatic screen printing machine designed for precise solder paste application on PCBs. This high-precision equipment ensures uniform solder paste distribution for optimal electronic component soldering in SMT production lines.

Key Specifications

Model

Machine Dimensions

1400(L) × 1630(W) × 1525(H) mm

Weight

Approx. 950Kg

PCB Size Range

Min: 50 × 50 mm | Max: 610 × 510 mm (standard)

Printing Accuracy

±0.025mm

Positional Accuracy

±0.01mm

Power Requirements

AC 220V±10% 50/60HZ Single phase

Product Overview

The T9 solder paste printing machine applies solder paste uniformly onto PCB solder pads using precision scrapers. Its high-precision motion control system ensures accurate coating position and thickness for optimal soldering quality in electronic manufacturing.

Key Features

Intelligent PCB thickness adjustment platform with lifting mechanism
German-made screw rod for stable operation and precise positioning
China's first online calibration technology
Advanced 2D inspection system
Modular design for easy maintenance and operation

System Modules

Rack module
Lifting module
Platform alignment module
Housing module
Image capture module
Stencil frame positioning module
Squeegee module
Display module
Conveyor module
Cleaning module
Air and power input

Technical Parameters

Basic Parameters
Screen Frame Size	650(X)×420(Y) to 1000(X)×880(Y) mm	Thickness: 20-40mm
PCB Thickness Range	0.2mm～6mm	(Use jig when PCB less than 0.4mm)
Conveyor Speed	0~1500mm/sec	Increment 1mm
Print System
Print Speed	5-200mm/s	Adjustable
Scraper Pressure	0~20kg
Vision System
Camera	Germany BASLER	1/3" CCD, 640×480 pixel
2D Detection	Standard feature

Optional Features

Pneumatic Top Clamp for thin PCBs (≤1mm)
Vacuum adsorption and unloading for FPC applications
Automatic solder paste addition system
SPI closed loop monitoring
Industry 4.0 integration (barcode trace, production analysis)
UPS power protection (15min backup)

Installation Requirements

Gas source: 4.5-6kgf/cm²; Inlet pipe Ø≥8mm
Power: Single-phase AC 220V±10% 50/60HZ, 4-6mm² power cord with 16A grounded socket
Floor pressure requirement: 1000kg/m²
Training: 2-3 personnel required for installation training
