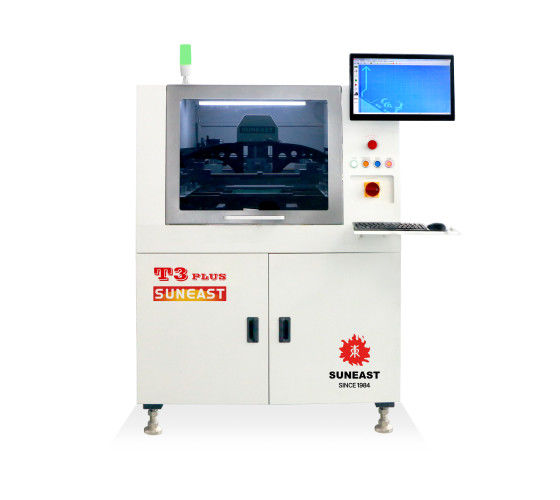

T3 PLUS Solder Paste Printer Machine AC220V Mark Point Recognition Tech

Brand Name:	Suneast
Model Number:	T3 Plus/T3 BTB/T3 Plus BTB
MOQ:	≥1 pc
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Screen Printing Machine

Model:

T3 Plus

Machine Dimension:

1140(L)*1380(W)*1530(H)mm

Weight:

Approx.900Kg

Total Power:

Approx.3kw

Main Power Supply:

AC 220V±10% 50/60HZ Single Phase

Main Air Supply:

4.5～6kgf/cm2

Min PCB:

50(X)×50(Y) (mm)

Max PCB:

400(X)×310(Y) (mm)

Support:

Magnetic Support, Magnetic Piece, Vacuum Chamber（Option）

Scraper Pressure:

0~20kg

Customizable:

Highlight:

wave solder multi module combined selective

multi module selective solder combined wave

combined selective solder multi module wave

Product Description

T3 PLUS Solder Paste Printer Machine AC220V with Mark Point Recognition Technology

Product Overview

The T3 PLUS is a full automatic screen printer featuring advanced mark point recognition technology, designed for precise solder paste application in SMT production lines. This machine ensures uniform solder paste distribution on PCB pads, enhancing soldering quality through its high-precision motion control system.

Key Features

Auto-balancing adjustable squeegee pressure system
Intelligent 2D detection capability
Standard dry/wet cleaning with optional vacuum cleaning
Advanced mark point recognition with stable system performance
China's first online calibration technology
Optional thin board printing capability

Technical Specifications

Basic Parameters

Screen Frame Size	520(X)×420(Y)--737(X)×737(Y) mm
PCB Size Range	Min: 50×50 mm \| Max: 400×310 mm
PCB Thickness	0.2mm～6mm (Jig required for PCBs under 0.4mm)
Conveyor Height	900±40mm
Support Options	Magnetic support, Magnetic piece, Vacuum chamber (Optional)

Print System

Print Speed	5-200mm/s adjustable
Scraper Type	Steel scraper (Rubber scraper optional)
Scraper Angle	60°
Scraper Pressure	0~20kg

Vision System

Alignment Method	Mark automatic alignment
Camera	Germany BASLER, 1/3"CCD, 640×480 pixel
View Range	9mm×7mm
Mark Dimensions	Diameter/side length 1mm～2mm (10% offset allowed)

Accuracy & Performance

Positional Accuracy	±0.01mm
Printing Accuracy	±0.025mm
Cycle Time	<10s (excluding print and cleaning time)

Physical Specifications

Machine Dimension	1140(L)×1380(W)×1530(H) mm (standard)
Weight	Approx. 900Kg
Power Supply	AC 220V±10% 50/60HZ Single phase
Total Power	Approx. 3kw
Air Supply	4.5～6kgf/cm²

Optional Features

Pneumatic Top Clamp for thin PCBs (≤1mm)
Vacuum Adsorption and unloading system
Automatic solder paste addition
SPI close loop system
Industry 4.0 capabilities (barcode trace, production analysis)
UPS power off protection (15min backup)

Installation Requirements

Gas source: 4.5-6kgf/cm²; Inlet pipe Ø≥8mm
Power: Single-phase AC 220V±10% 50/60HZ, 4-6mm² power cord with 16A grounded socket
Ground pressure requirement: 1000kg/m²
Training: 2-3 personnel required for installation and training assessment
