Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor

Brand Name: Suneast
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Highlight:

magnetic spring iso motor ce

,

ce magnetic spring iso motor

,

ce magnetic iso spring motor

Product Description

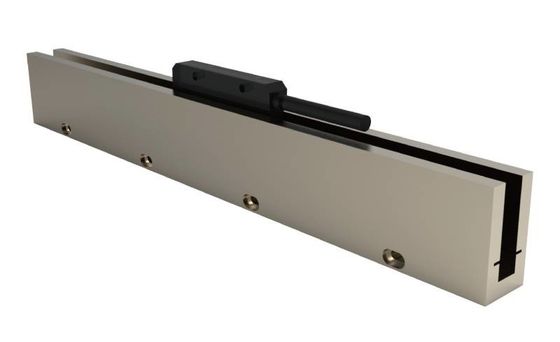

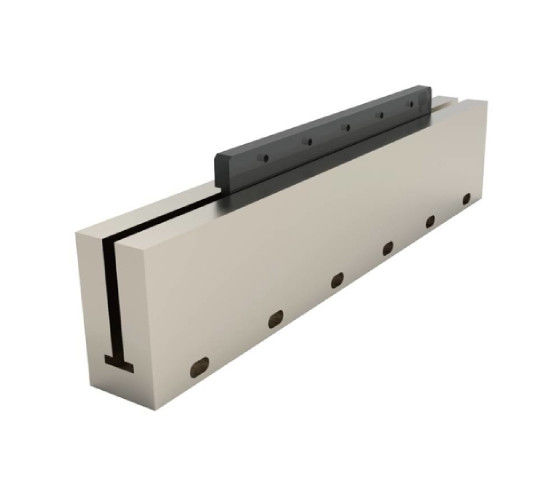

Modular Structural Design Ironless Linear Motor



    The Ironless linear motor of Suneast technology won widely recognization with its mature technology and advanced design, which has been successfully applicated in visual detection, automatic installation, die bond, tablet , intelligent mobile phone and other semiconductor devices.



Features:

  • Peak Force 85-501N
  • Coreless Brushless Design
  • Zero Cogging and Attraction Force
  • Light weight and Small size for the Coil Unit
  • High acceleration and high positioning accuracy
  • Modularize Structural Design

Application range:

  • Motion as core
  • Electronic assembly
  • Semiconductor manufacturing
  • Medical image
  • Electronic assembly
  • Digital printing
  • FPD
  • Precision laser processing

Product Parameters:

  Unit TM02X1 TM02X2 TM05X1 TM05X2 TM05X3 TM22X1 TM22X2 TM22X3
Peak Force N 50.4 100.8 73.8 156.6 248.4 324 648 972
RMS Force N 9.24 18.48 13.53 28.71 45.54 59.4 118.8 178.2
Force Constant N/A 4.2 8.4 6.15 13.05 20.7 27 54 81
RMS Current A 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2
Peak Current A 12 12 12 12 12 12 12 12
Rphas to phase Ohms 0.56 1.09 1.2 2.2 3.14 2.56 5.12 7.68
Lphase to phase mH 0.22 0.41 0.29 0.66 0.98 2.02 4.03 6.05
Back EMF constant Vrms/m/s 3.44 4.5 5.04 10.7 16.97 22.14 44.28 66.42
Driver Bus Voltage V 100/200 100/200 100/200 100/200 100/200 100/200 100/200 100/200
Magnetic Pitch mm 30.4 30.4 27.2 27.2 27.2 48 48 48
Length of the forcer mm 66 126.9 64.7 118.1 171.5 104 200 296
Height of the motor mm 52.3 52.3 76.5 76.5 76.5 127 127 127
Width of the motor mm 22 22 28.2 28.2 28.2 43.5 43.5 43.5
Mass kg 0.16 0.31 0.13 0.21 0.56 0.65 0.88 1.2



IRONLESS MOTOR MOVER
Specifications Part No. Lead Time
TM02X1 N27001001502A

3-4 weeks after

placing the order
TM02X2 N27001001503A
TM22X1 N27001001522A
TM22X2 N27001001520A
TM22X3 N27001001643A
TM05X1 N27001000803A

2-3weeks after

placing the order
TM05X2 N27001000804A
TM05X3 N27001000874A



IRONLESS MOTOR TRACK
Specifications Part No. Lead Time
TRKTM02-L76 N27001001496A

3-4 weeks after

placing the order
TRKTM02-L121.6 N27001001497A
TRKTM02-L152 N27001001498A
TRKTM02-L182.4 N27001001499A
TRKTM02-L228 N27001001500A
TRKTM02-L304 N27001001501A
TRK22X2-L216 N27001001523A
TRK22X2-L360 N27001001521A
TRKTM05-L204 N27001000801A

2-3weeks after

placing the order
TRKTM05-L340 N27001000871A
TRKTM05-L272 N27001000868A
TRKTM05-L408 N27001001802A



Specifications:

Installation diagram and basic dimension parameters of the coil set

TM02X1

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 0

Note: The length of the magnetic track: L= Nx76mm.

                                                               N= the number of the counter bore



TM02X2

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 1

Note: The length of the magnetic track: L= Nx76mm.

                                                               N= the number of the counter bore





TM05X1

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 2

Note: The length of the magnetic track: L= Nx68mm.

                                                               N= the number of the counter bore



TM05X2

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 3

Note: The length of the magnetic track: L= Nx76mm.

                                                               N= the number of the counter bore



TM05X3

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 4

Note: The length of the magnetic track: L= Nx76mm.

                                                               N= the number of the counter bore





TM22X1

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 5

Note: The length of the magnetic track: L=Nx72mm.

                                                               N= the number of the counter bore





TM22X2

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 6

Note: The length of the magnetic track: L=Nx72mm.

                                                               N= the number of the counter bore





TM22X3

Modular Structural Ironless Linear Motor 85N-501N Brushless Coreless Linear Motor 7

Note: The length of the magnetic track: L=Nx72mm.

                                                               N= the number of the counter bore
