High Peak Force Low Cogging ModularLinear Motor Ironcore Series



    The most popular Ironcore motor SUNEAST TECHNOLOGY has to offer. In the machine design of high efficiency, high acceleration, micron accuracy, high-end iron core motor is good performances. The iron core motor suited for nearly any application, including Industrial robot, XYT axial table, gantry structure and CNC ect.



Features:

  • Peak Force 394-1080N
  • Ironcore High peak force technology
  • Low Cogging and Low Attraction Force
  • High acceleration and high positioning accuracy
  • Modularize Structural Design
IRONCORE MOTOR PARAMETER
Parameter Unit TM01X1 TM01X2 TM01X3 TM08X1 TM09X1 TM10X1
Peak Force N 294 588 882 630 720 1080
RMS Force N 55.4 110.9 166.3 105 203.6 305.4
Force Constant N/A 9.8 19.6 29.4 21 24 36
RMS Current A 4 4 4 5 6 6
Peak Current A 30 30 30 30 30 30
Rphas to phase Ohms 1.2 2.35 3.6 1.05 1.6 2.4
Lphase to phase mH 3.25 6.45 9.7 7.3 3.8 5.1
Back EMF constant Vrms/m/s 15.1 30.2 45.3 18 19.8 19.8
Driver Bus Voltage V 100/200 100/200 100/200 100/200 100/200 100/200
Magnetic Pitch mm 32 32 32 21.4 32.6 32.6
Length of the forcer mm 98.5 160.5 225.5 86.5 152.4 217.2
Track length mm 373 373 373 746.7 L L
Magnetic slot Force N 5.8 9.8 17.5 10 10 16



TM01* 1 Series Specifications

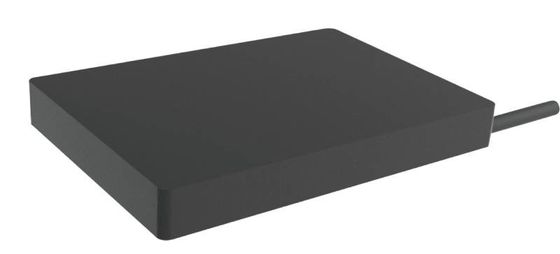

Low Cogging Modular Iron Core Linear Motor 394N-1080N Iron Core Motor 0



TM08*1 Series Specifications

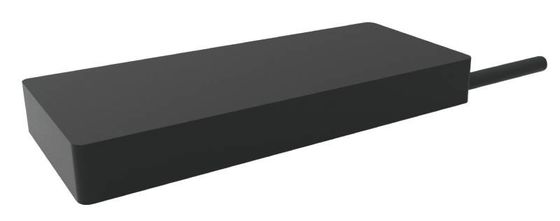

Low Cogging Modular Iron Core Linear Motor 394N-1080N Iron Core Motor 1



TM09*1 Series Specifications

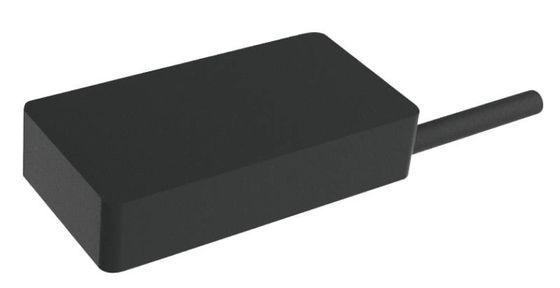

Low Cogging Modular Iron Core Linear Motor 394N-1080N Iron Core Motor 2

Note: The length of the magnetic track: 228.2mm, 293.4mm and 358.6mm. Can be spliced.



TM10*1 Series Specifications

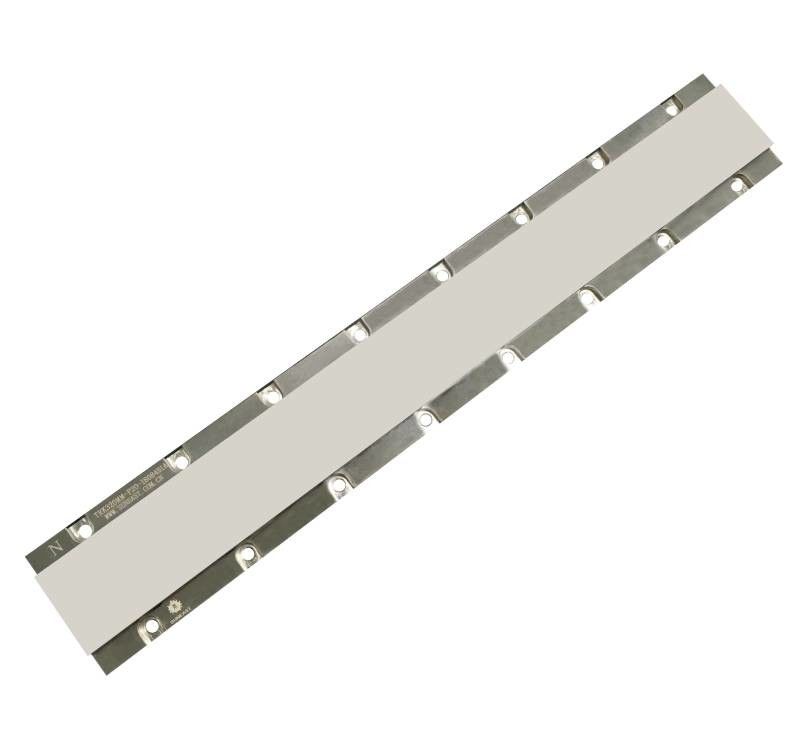

Low Cogging Modular Iron Core Linear Motor 394N-1080N Iron Core Motor 3

Note: The length of the magnetic track: 228.2mm, 293.4mm and 358.6mm.Can be spliced.
