| Brand Name: | Suneast |
| MOQ: | ≥1 pc |
| Price: | Negotiable |
| Packaging Details: | Plywood crate |
| Payment Terms: | T/T |

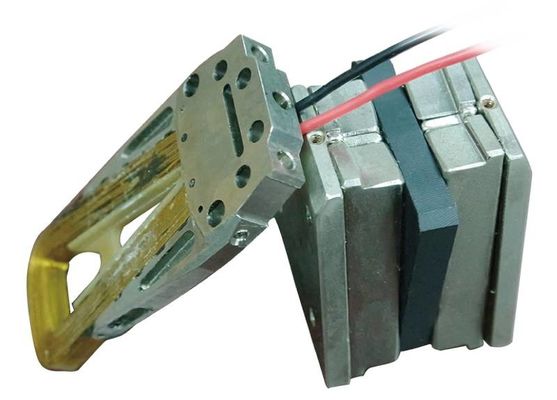

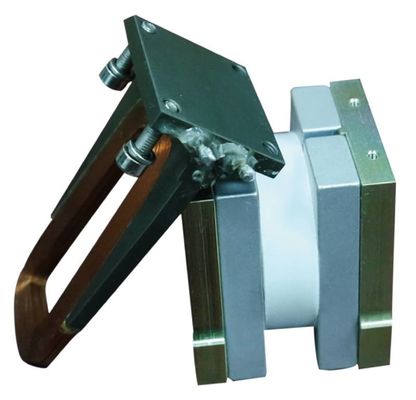

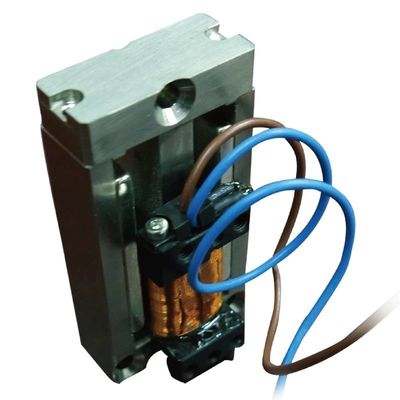

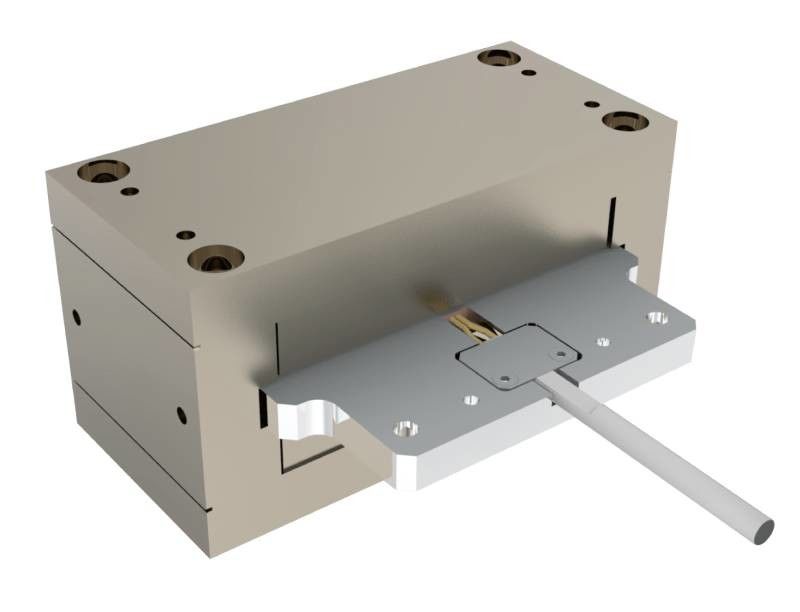

Zero Cogging Higt acceleration Positioning Accuracy Linear Motor Voice Coil Series
The high-end Voice Coil motors are available in various configurations that can easily be adapted to application specific requirements. Many Motors are successfully applied throughout the semiconductor, for example Optical inspection, Auto assembly, die bonded, flat panel and smart mobile phone.
Features:
| VOICE COIL MOTOR PARAMETER | |||
| Parameter | TM06X1 | TM07X1 | TM20X1 |
| Peak Force(N) | 900 | 30 | 8 |
| RMS Force(N) | 105 | 5.4 | 1.6 |
| Force Constant(N/A) | 30 | 3 | 4 |
| RMS Current(A) | 3.5 | 1.8 | 0.4 |
| Peak Current(A) | 30 | 10 | 2 |
| Rphas to phase(Ohms) | 2.63 | 2.7 | 5.2 |
| Lphase to phase(mH) | 2.85 | 0.63 | 0.37 |
| Driver Bus Voltage(V) | 150/200 | 85/100 | 48/100 |
| Travel(mm) | ±7 | ±5 | ±3 |
| VOICE COIL SERIES MOTOR MOVER | ||
| Specifications | Part No. | Lead Time |
| TM06X1 | N27001001644A | 3-4 weeks after placing the order |
| TM07X1 | N27001001645A | |
| TM20X1 | N27001001646A | |
| TM32X1 | N27001001647A | |
| TM33X2 | N27001001422A | 2-3weeks after placing the order |
| TM36X2 | M27001001820A | |
TM06*1 Specification parameter TM20*1 Specification parameter
TM07*1 Specification parameter
Video
Video
Video
Video
Video
Video
Video
Video
|
