High Resolution Direct Drive Linear Motor 11.2Nm-75.6Nm Compact Linear Motor

Brand Name:	Suneast
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Highlight:

magnetic linear motor 75.6Nm

magnetic linear motor 11.2nm

11.2nm magnetic linear motor

Product Description

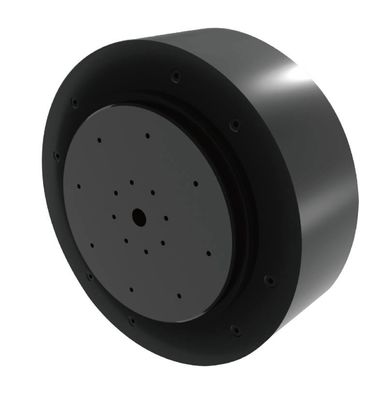

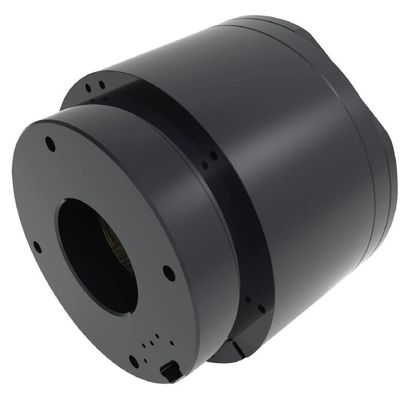

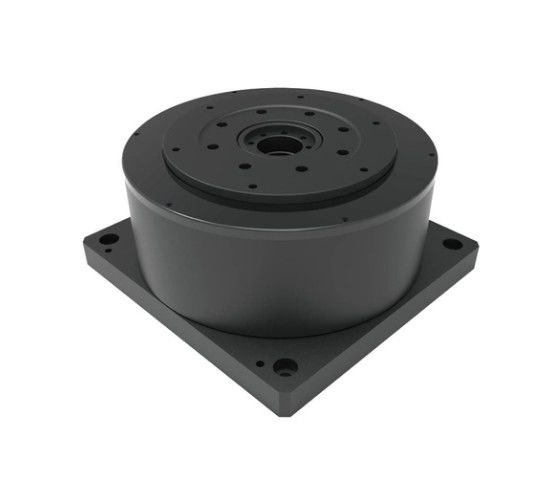

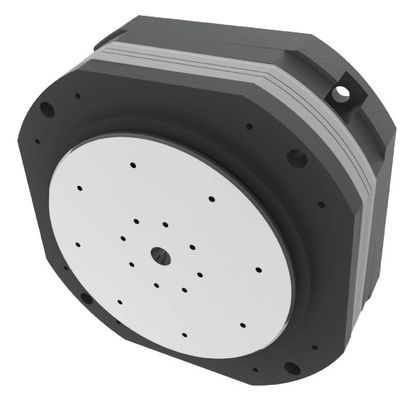

High Resolution Direct Drive Linear Motor 11.2Nm-75.6Nm Compact Linear Motor

Product Overview

Direct Drive High Resolution Compact Design Linear Motor DDR Series from Suneast Technology represents advanced direct-drive technology offering maintenance-free clean mechanical assembly, improved accuracy, higher throughput, and reliable, quiet operation for diverse machine design applications.

Key Features

Peak Torque range: 11.2-75.6Nm
Brushless direct drive technology
Low cogging & attraction torque
High resolution encoder
Excellent responsiveness, positioning accuracy, and repeatability
Compact, space-saving design

DDR Series Technical Parameters

Motor Function	Unit	TM11X1	TM11X2	TM16X1	TM17X1	TM18X1	TM19X1
RMS Current	A	4.97	4.97	6	6	6	6
Peak Current	A	28	28	28	28	28	28
Encoder Resolution	cnts/r	180000	1184000	500000/1000000	500000/1000001	500000/1000002	3148800
No. of pole-pairs		16	16	16	16	16	32
Torque Constant	Nm/A	0.4	0.4	0.34	0.6	1.85	2.7
Back EMF constant	Vrms/m/s	0.56	0.56	0.38	0.65	2.11	3
Cogging Torque	Nm	＜0.4	＜0.4	＜0.25	＜0.2	＜0.75	＜1.2
RMS Torque	Nm	1.988	1.988	2.04	3.6	11.1	16.2
Peak Torque	Nm	11.2	11.2	9.52	16.8	51.8	75.6
MAX.Axial Loading	N	20000	20000	20000	20000	20000	15000
Max.Velocity	r/min	500	600	700	700	700	750
Repeatability	arcsec	±8	±2.75	±4	±4	±4	±3
Positioning accuracy	arcsec	±7	±2.97	±3	±3	±3	±1.5
Rotor weight	Kg	1.3	1.3	1	1	1.8	3
Rotor inertia	Kg*m²	0.0025	0.0025	0.0013	0.0013	0.0037	0.0089
Inner diameter	mm	48	48	10	10	25	20
Outer diameter	mm	127.5	127.5	108	108	108	180
Height	mm	108.5	105.5	60	60	120	220

TM35 DDR Motor

Professional MINIDDR research and manufacturing
16mm DDR motor with center rotating shaft vacuum holding

TM35 DDR Motor Parameters

RMS Current	Peak Current	Encoder Resolution	No. of pole-pairs	Torque Constant
0.5	1.5	14400	4	0.08
Rated Torque	Peak Torque	Rated Speed	Maximum Speed	Rphas to phase
0.1	0.15	80	150	9.75
Lphase to phase	Weight	Electrical time constant	Repeatability
0.22	0.17	0.02	0.025

Motor Variants

Specifications	Part No.	Lead Time
Magnet-DD motor	M27001000149A	3-4 weeks after placing the order
Vacuum-DD motor	N27001001256A

Comparison: DDR Motor vs Traditional Motors

DDR direct drive motors represent the next generation of motion control technology, offering superior performance compared to traditional servo and step motors, making them ideal for product optimization and upgrade applications.

Parameter	DDR Direct Drive Motor	Servo Motor	Step Motor
Accuracy	High	Medium	Low
Torque	High	Medium	Low
Reliability	High	Normal	Normal
Speed	Low	High	Low
Keep accuracy	Good	Medium	Medium
Dynamic performance	Good	Normal	Low
Cost	High	Medium	Low
