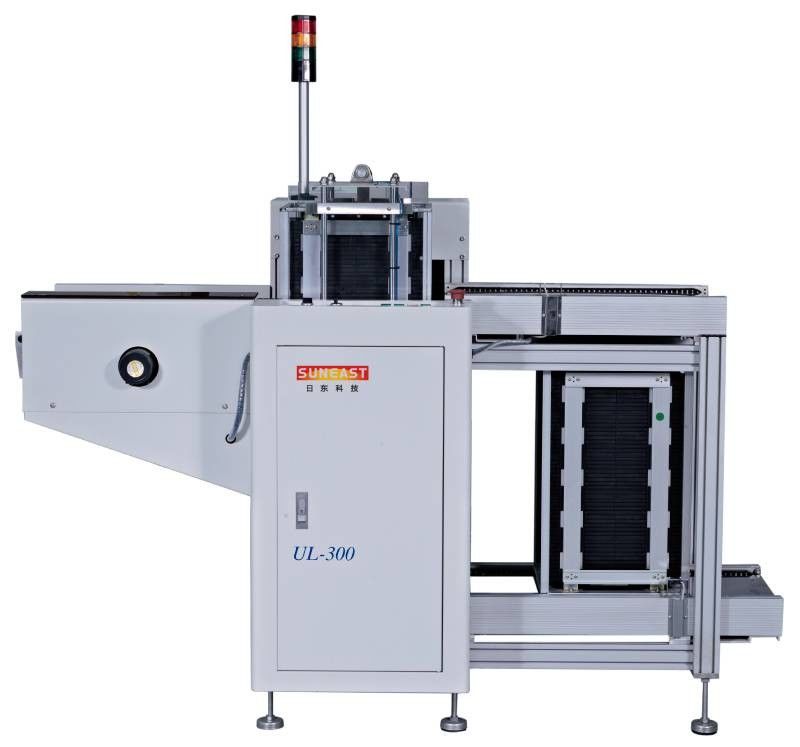

Fully Automatic PCB Loader PLC PCB Magazine Loader Suneast

Brand Name: Suneast
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Name:
PCB Unloader
Model:
UL-300
Dimension:
1820(L)*860(W)*1250(H)mm
Machine Weight:
200kg
Power:
0.2KW
Conveying Height:
900±20mm
Control Mode:
PLC
Production Cycle:
≤10/s
Power Supply:
AC220V 50/60Hz
Gas Pressure:
0.4~0.7MPa
Highlight:

Suneast PLC PCB Loader Magazine

,

Suneast PCB Loader Magazine

,

Magazine Suneast PCB Loader

Product Description
Fully Automatic PCB Loader PLC PCB Magazine Loader Suneast
Product Specifications
Attribute Value
Name PCB Unloader
Model UL-300
Dimension 1820(L)*860(W)*1250(H)mm
Machine weight 200kg
Power 0.2KW
Conveying height 900±20mm
Control mode PLC
Production cycle ≤10/s
Power supply AC220V 50/60Hz
Gas pressure 0.4~0.7MPa
Product Description
Stable Structure Smoothly Lift Fully Automatic PCB Unloader
  • Special lifting table with stable structure, smoothly lifts and pushes out PCBs
  • Controlled by PLC with stable performance to ensure smooth production line operation
  • Customizable to make L-type unloader
Model Comparison
Model UL-300 UL-400 UL-460 UL-500
Machine dimension(mm) 1820L*860W*1250H 2140L*940W*1250H 2240L*1000W*1250H 2240L*1070W*1250H
PCB Size(mm) Min:70L*50W*0.7H~ Max:330L*250W*3H Min:70L*70W*0.7W~ Max:450L*320W*3H Min:70L*50W*0.7H~ Max:530L*380W*3H Min:70L*70W*0.7H~ Max:530L*460W*3H
Carrier size (Pallet size)(mm) 355L*320W*563H Weight Approx 6kg 460L*400W*565H Weight Approx 8.8kg 535L*460W*570H Weight Approx 10.5kg 535L*530W*570H Weight Approx 12.3kg
Approx machine weight 200kg 250kg 300kg 350kg
Power 0.2KW 0.3KW 0.3KW 0.5KW
Additional Specifications

Total allowed loading number of the carrier: 3

Conveying height: 900±20mm

Stepping choice: 10mm,20mm,30mm,40mm,50mm

Control mode: PLC

Production cycle: ≤10/s

Power supply: AC220V 50/60Hz

Gas pressure: 0.4~0.7MPa

Direction: L to R (Options: R to L)
