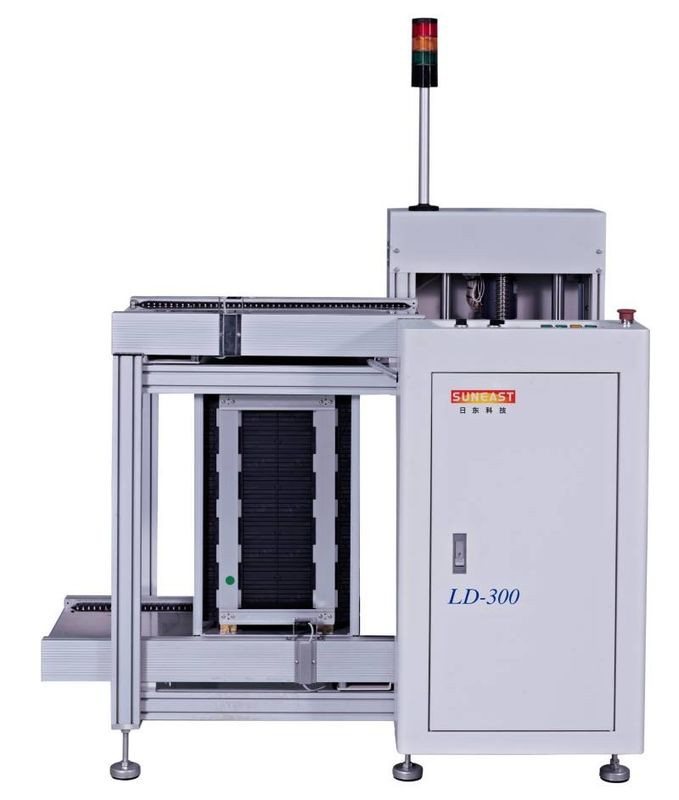

Full Automatic PCB Loader 0.3KW 0.5KW SMT Loader Machine AC220V

Brand Name: Suneast
Model Number: LD-300/400/460/500
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Name:
PCB Loader
Model:
LD-300
Machine Dimension:
1250(L)*860(W)*1250(H)mm
Approx Machine Weight:
150kg
Power:
0.2KW
Conveying Height:
900±20mm
Stepping Choice:
10mm，20mm，30mm，40mm，50mm
Powersupply:
AC220V 50/60Hz
Gas Pressure:
0.4~0.7MPa
Control Mode:
PLC
Highlight:

Suneast Magazine Loader PCB

,

Magazine Suneast Loader PCB

,

Magazine Suneast PCB Loader

Product Description
Full Automatic PCB Loader 0.3KW 0.5KW SMT Loader Machine AC220V
Product Specifications
Attribute Value
Name PCB Loader
Model LD-300
Machine dimension 1250(L)*860(W)*1250(H)mm
Approx machine weight 150kg
Power 0.2KW
Conveying height 900±20mm
Stepping choice 10mm, 20mm, 30mm, 40mm, 50mm
Powersupply AC220V 50/60Hz
Gas pressure 0.4~0.7MPa
Control mode PLC
Product Description
Stable Performance Fully Automatic PCB Loader for Smooth Production Line Operation
  • Special lifting table with stable structure for smooth PCB lifting and pushing
  • PLC-controlled operation ensures stable performance and smooth production line
Detailed Product Parameters
Mode LD-300 LD-400 LD-460 LD-500
Machine dimension(mm) 1250L*860W*1250H 1475L*940W*1250H 1572L*1000W*1250H 1572L*1070W*1250H
PCB Size(mm) Min:70L*50W*0.7H~Max:330L*250W*3H Min:70L*70W*0.7H~Max450L*320W*3H Min:70L*50W*0.7H~Max:530L*380W*3H Min:70L*70W*0.7H~Max:530L*460W*3H
Carrier size (Pallet size) (mm) 355L*320W*563H Weight Approx 6kg 460L*400W*565H Weight Approx 8.8kg 535L*460W*570H Weight Approx 10.5kg 535L*530W*570H Weight Approx 12.3kg
Approx machine weight 150kg 200kg 250kg 300kg
Power 0.2KW 0.2KW 0.3KW 0.5KW
Total allowed loading number of the carrier 3
Conveying height 900±20mm
Stepping choice 10mm,20mm,30mm,40mm,50mm
Control mode PLC
Production cycle ≤10/s
Powersupply AC220V 50/60Hz
Gas pressure 0.4~0.7MPa
Direction L to R(Options:R to L)
