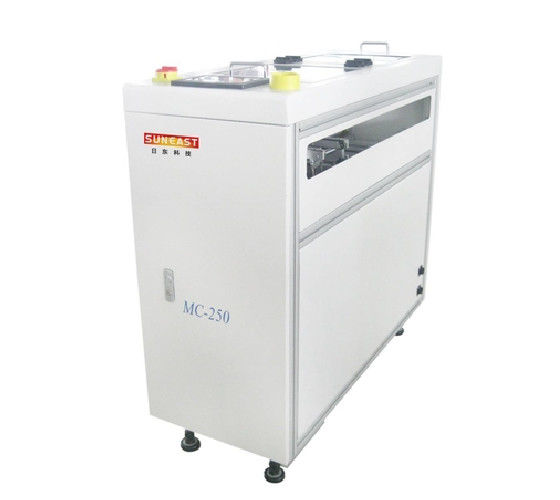

Dual Track Turning Conveyor Linking AOI Parallel Transfer Conveyor

Brand Name: Suneast
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Name:
Transfer Conveyor
Model:
MC-250
Dimension:
1150(L)*450(W)*1050(H)mm
Transferring Route:
0~650mm
Machine Weight:
120kg
Power:
0.3KW
Loading Capacity:
0-5kg
Repositioning Accuracy:
0.1mm
Control Mode:
PLC
Production Cycle:
12-15/s
Highlight:

soldering multi module combined selective wave

,

combined wave soldering multi module selective

,

multi module wave soldering combined selective

Product Description
Dual Track Turning Conveyor Linking AOI Parallel Transfer Conveyor
Product Specifications
Attribute Value
Name Transfer Conveyor
Model MC-250
Dimension 1150(L)*450(W)*1050(H)mm
Transferring route 0~650mm
Machine weight 120kg
Power 0.3KW
Loading capacity 0-5kg
Repositioning accuracy 0.1mm
Control mode PLC
Production cycle 12-15/s
Product Features
  • Suitable for linking dual track equipment
  • Suitable for linking AOI and send out wires separately according to OK/NG signal
  • PLC + touch screen programmable control, the travelling route can be directly input from the touch screen
Model Comparison
Model MC-250 MC-350 MC-460
Machine dimension(mm) 1150L*450W*1050H 1480L*580W*1050H 1780L*650W*1050H
PCB Size(mm) Min:70L*50W*0.7H~ Max:330L*250W*3H Min:70L*70W*0.7H~ Max:460L*350W*3H Min:70L*50W*0.7H~ Max:530L*460W*3H
Transferring route 0~650mm 0~820mm 0~1080mm
Machine weight 120kg 150kg 200kg
Power 0.3KW 0.4KW 0.6KW
Additional Specifications
Loading capacity: 0-5kg
Conveying height: 900±20mm
Track adjusting accuracy: Manual/Auto(options)
Repositioning accuracy: 0.1mm
Control mode: PLC
Production cycle: 12-15/s
Power supply: AC220V 50/60Hz
Gas pressure: 0.4-0.7MPa
Direction: L to R(Options: R to L)
