Single Track PCB Inspection Conveyor AC220V PCB Handling Conveyor

Brand Name:	Suneast
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Inspection Conveyor

Model:

NC-300E

Dimension:

1000(L)*666(W)*900(H)mm

Machine Weight:

Power:

0.1KW

Track Adjusting Way:

Manual

Loading Capacity:

0-5kg

Production Cycle:

≤10/s

Conveying Height:

900±20mm

Power Supply:

AC220V 50/60Hz

Highlight:

selective multi module wave soldering combined

selective wave solder multi module combined

combined multi module wave solder selective

Product Description

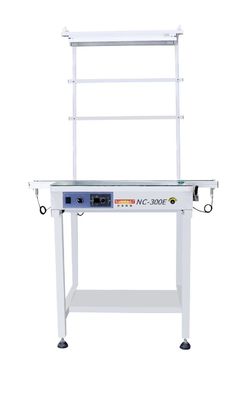

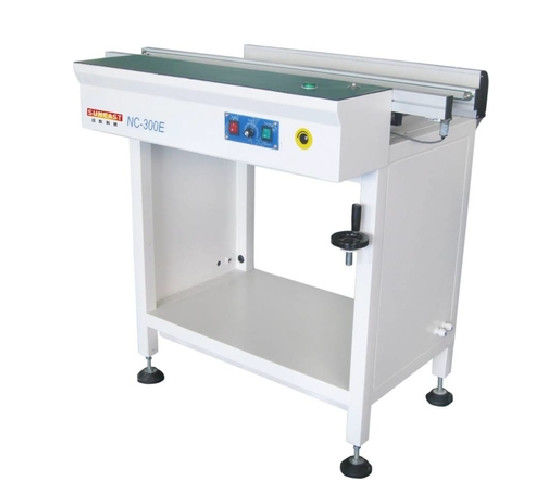

Single Track PCB Inspection Conveyor AC220V PCB Handling Conveyor

Product Overview

This single track conveyor/inspection conveyor is designed for seamless integration with various SMT machines. It features customizable length options and simplified installation for efficient production line grouping.

Key Specifications

Model

NC-300E

Dimensions

1000(L) × 666(W) × 900(H) mm

Machine Weight

70kg

Power

0.1KW

Loading Capacity

0-5kg

Production Cycle

≤10/s

Power Supply

AC220V 50/60Hz

Technical Features

Manual track adjustment for precise positioning
Sensor-based control mode for automated operation
Standard left-to-right direction (right-to-left optional)
Optional lighting available for inspection purposes
Conveying height adjustable at 900±20mm

Model Comparison

Feature	NC-300E	SNC-300E	BC-300E	SBC-300E
Machine Dimension (mm)	1000L×666W×900H	1000L×1100W×900H	800L×666W×900H	800L×1100W×900H
PCB Size (mm)	Min:50W Max:350W	Min:50W Max:250W (dual board)	Min:50W Max:350W	Min:50W Max:250W (dual board)
Track Quantity	Single track	Dual track	Single track	Dual track
Power	0.1KW	0.15KW	0.1KW	0.15KW

Universal Compatibility: Designed to work with all major SMT machine brands, this conveyor system offers flexible configuration options to match your specific production requirements.
