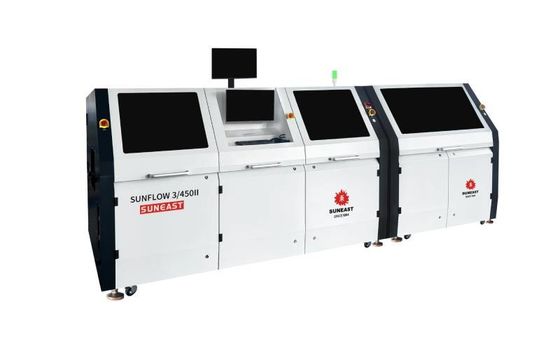

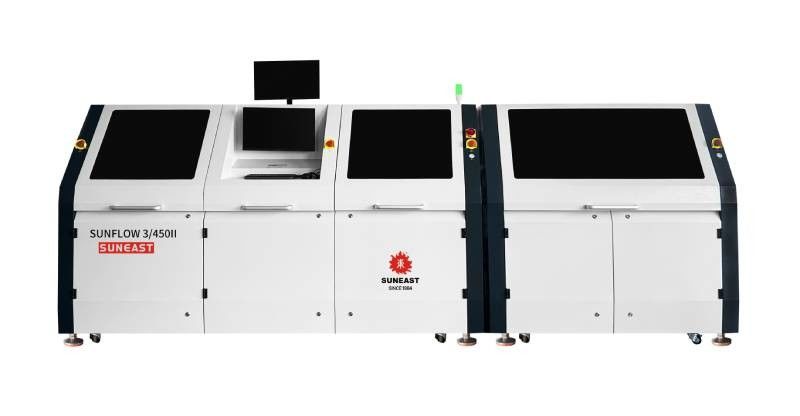

Multi Module Selective Wave Soldering Machine Combined Selective Wave Solder

Brand Name:	Suneast
Model Number:	SUNFLOW 3/450II
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Highlight:

Multi Module Selective Wave Soldering Machines

Multi Module Selective Wave Soldering

Selective Wave Soldering Multi Module

Product Description

Multi Module Selective Wave Soldering Machine Combined Selective Wave Solder

High-performance multi-module combined selective wave soldering system designed for precision PCB through-hole soldering applications.

Product Overview

Selective wave soldering is a specialized process for PCB plug-in through-hole soldering, consisting of three integrated modules: flux spraying, preheating, and soldering. The system operates via pre-programmed commands to precisely target solder locations, ensuring optimal results.

Applications

Ideal for high-end electronic manufacturing including military aerospace, automotive electronics, railway systems, and switch power supplies. Specifically designed for multi-layer PCBs with demanding soldering requirements and complex processes.

Key Features

Modular design for flexible expansion
Integrated control system
Multiple solder nozzle sizes for different positions
High efficiency and capacity operation

Common Combination Form

System Specifications

Programming Options

Multiple programming methods available
Custom parameters for each soldering point
Offline programming capability
Comprehensive process data recording

Conveyor System

Hybrid transport system combining chain and roller mechanisms. Chain transport in flux and preheating modules ensures stability, while roller transport in the soldering module provides precise board positioning and repeatability.

Precision Spray System

Standard configuration includes 130μm precision drop nozzle for uniform flux application. Minimum spray area of 3mm achieves over 90% flux savings compared to conventional systems.

Advanced Preheating System

Dual heating system combining top convection and bottom IR emitter heaters ensures even temperature distribution across the board. Additional top heater maintains consistent temperature throughout the soldering cycle, ideal for lead-free soldering and multi-layer boards.

High-Quality Soldering System

Electromagnetic solder pump technology
Consistent wave height maintenance
Quick-change solder nozzles
Specialized nozzle designs available
Low maintenance requirements
Comprehensive welding process recording

Available Options

Automatic Tinning

Supports 2mm diameter tin wire
Accommodates 1kg to 4kg tin wire coils
Customizable tin addition frequency and duration

Automatic Cleaning

Powder-based cleaning method
Customizable cleaning locations
Adjustable cleaning frequency and duration
Prevents nozzle oxidation

Fiducial Recognition System

High-definition camera configuration
Multiple image recognition modes
Selectable recognition functions

Installation Requirements

Power: Three phase five wire: 380V, 50/60Hz; 16mm² wire diameter with 125A leakage protection switch (150-200mA capacity)

Floor: Must withstand 1000kg/m² pressure

Ventilation:

Spray module: Ø150mm duct, 150M³/H exhaust
Welding module: Ø150mm duct, 150M³/H exhaust
