Selective Wave Soldering Machine
>

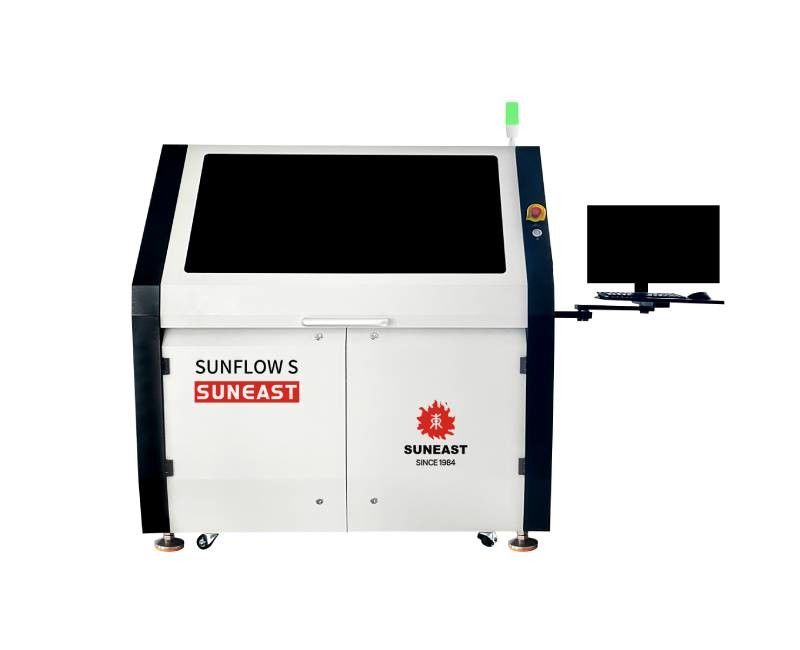

Automatic Selective Soldering Machine 5kw Select Solder Machine

Automatic Selective Soldering Machine 5kw Select Solder Machine

Brand Name: Suneast
Model Number: SUNFLOW S
MOQ: ≥1 pc
Price: Negotiable
Packaging Details: Plywood crate
Payment Terms: T/T
Detail Information
Place of Origin:
Shenzhen, Guangdong Province, China
Certification:
CE、ISO
Name:
Selective Soldering Machine
Model:
SUNFLOW S
Dimension:
Selective Soldering Machine
Weight:
1050kg
Max PCB Size:
510(L)x450(W)mm
Min PCB Size:
120(L)x50(W)mm
PCB Top Side Clearance:
120mm
PCB Bottom Side Clearance:
60mm
Supply Voltage:
380VAC
Max Power Consumption:
<11kw
Max Soldering Wave Height:
5mm
Heating Power:
5kw
Heating Mode:
Hot Air
Customizable:
Yes
Highlight:

multi module Automatic Selective Soldering

,

multi module Auto Selective Soldering Machine

,

multi module Selective Soldering Machine 5kw

Product Description
Automatic Selective Soldering Machine 5kw Select Solder Machine
Product Overview

The SUNFLOW S Selective Soldering Machine is a specialized wave soldering system designed for PCB plug-in through-hole soldering applications. This advanced equipment features three key modules: flux spraying, preheating, and soldering, all operating according to pre-programmed instructions for precise, automated operation.

Key Specifications
Model SUNFLOW S
Weight 1050kg
Max PCB Size 510(L)x450(W)mm
Min PCB Size 120(L)x50(W)mm
Supply Voltage 380VAC
Max Power Consumption <11kw
Heating Power 5kw
Heating Mode Hot air
Customizable Yes
Applications

Ideal for high-end electronic products including:

  • Military aerospace equipment
  • Automotive electronics
  • Railway products
  • Switch power supplies
  • Multi-layer PCBs with high soldering requirements
Key Features
  • Independent R&D electromagnetic pump for precise solder delivery
  • Roller conveyor system maximizes welding space
  • Modular design simplifies maintenance
  • Real-time welding status display
  • High precision spray system with 130μm nozzle
  • Dual preheating system (top convection + bottom IR)
  • Quick-change solder nozzles
  • Process recording capability
System Components
Automatic Selective Soldering Machine 5kw Select Solder Machine 0
  • Preheat Module
  • Soldering Module
  • Conveyor System
Operation Process
Automatic Selective Soldering Machine 5kw Select Solder Machine 1
  1. PCB delivered to specified position
  2. Programmed heating and soldering
  3. PCB output
Optional Features
  • Automatic tinning: Supports 2mm diameter tin wire with adjustable addition frequency
  • Automatic cleaning: Powder cleaning method with customizable settings
  • Fiducial identification: High definition camera for precise positioning
Technical Parameters
General Parameters
Dimensions (mm) 1550(L)*1930(W)*1630(H)
Conveyor Height (mm) 900±20
Conveyor Speed (m/min) 0.2-10
Max PCB Weight (kg) ≤8
Soldering System
Nozzle Inner Diameter (mm) 2.5-10
Max Wave Height (mm) 5
Solder Pot Capacity (kg) 13kg (Sn63pb) / 12kg (lead-free)
Preheating System
Temperature Range (°C) <200
Heating Power (kw) 5
Installation Requirements
  • Power: Three phase five wire (380V, 50/60HZ) with 16mm² wire diameter
  • Floor must withstand 1000kg/m² pressure
  • Ventilation: Ø150mm ducts required for spray and welding modules
  • Nitrogen supply: ≥99.999% purity at 0.6Mpa pressure
