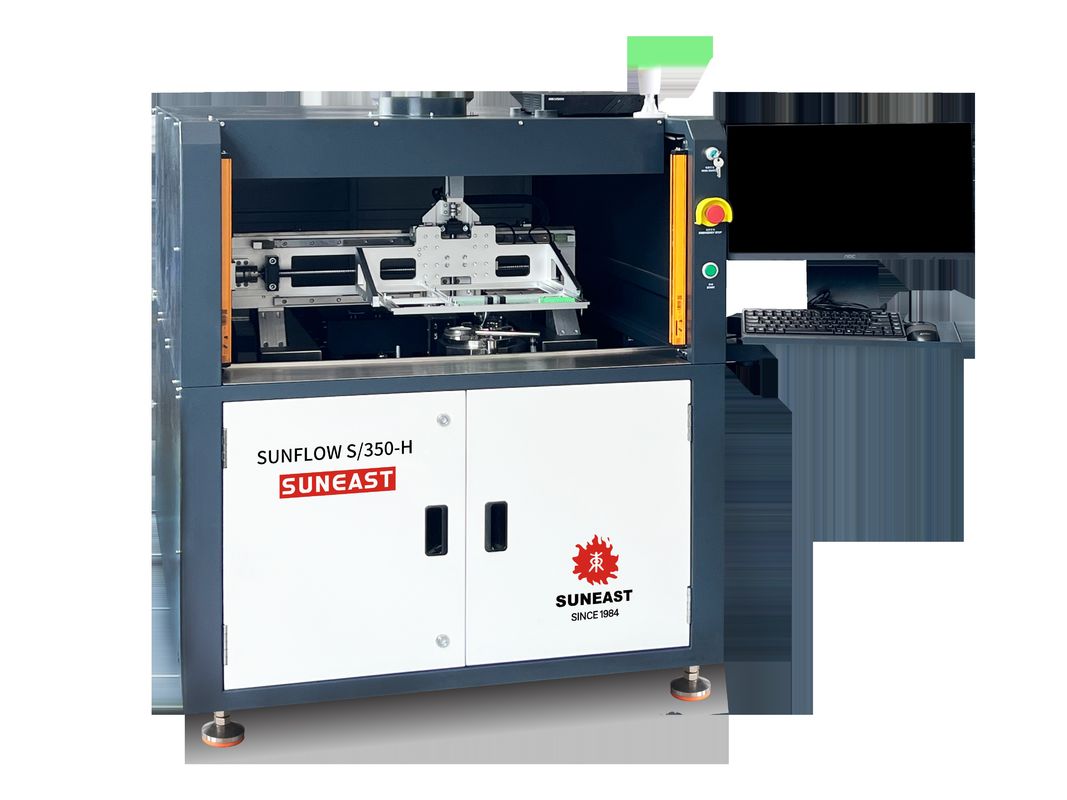

Spraying System Offline Selective Soldering Machine Visual Monitoring System Selective Solder

Brand Name:	Suneast
Model Number:	SUNFLOW S/350-H
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Offline Selective Soldering Machine

Overall Dimension(mm)Not Include Indicator Light And Monitor):

1080(L)*1440(W)*1310(H)

Supply Voltage(VAC):

Frequency(HZ):

50/60

Required Purity Of Nitrogen(%):

>99.999

Air Input Pressure(Mpa):

Highlight:

Spraying System Offline Selective Soldering Machine

Visual Monitoring System Selective Solder

Product Description

Spraying System Offline Selective Soldering Machine Visual Monitoring System Selective Solder

Product Specifications

Attribute	Value
Name	Offline Selective Soldering Machine
Overall dimension (mm) Not include indicator light and monitor	1080(L)1440(W)1310(H)
Supply Voltage (VAC)	380
Frequency (HZ)	50/60
Required Purity of Nitrogen (%)	>99.999
Air Input Pressure (Mpa)	0.6

Key Features

Compact structure with small footprint for space efficiency
Universal fixture accommodates multi-variety, small batch production and sampling
High stability electromagnetic pump system
Multi-zone preheating system reduces energy consumption
Integrated camera programming and real-time visual monitoring
Safety grating ensures operator protection

Soldering Process

1. Place the board in the designated position on the universal fixture and press the start button

2. System automatically performs selective fluxing, preheating and soldering according to programmed settings

3. Remove the completed board

The 3-axis linkage motion module precisely moves the PCB board in X/Y/Z directions to complete the entire fluxing, preheating, and soldering process according to pre-programmed instructions.

Technical Parameters: SUNFLOW S/350-H

Three-axis motion system: Manual board placement with universal fixture and fixed solder pot; PCB moves in X/Y/Z directions
Fluxing system: Three-fluid valve nozzle with precision regulating valve for automatic voltage-stabilized flux supply
Preheating system: Infrared zone preheating with PID temperature control (±2℃ accuracy)
Soldering system: Self-developed high-stability electromagnetic pump with easy nozzle replacement
Programming system: High-definition camera with multiple programming methods for fast setup
Visual monitoring: Real-time process observation with clear visibility
