Preheating Program System Offline Selective Soldering Machine High Stability Selective Solder

Brand Name:	Suneast
Model Number:	SUNFLOW S/350-H
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Offline Selective Soldering Machine

Overall Dimension(mm)Not Include Indicator Light And Monitor):

1080(L)*1440(W)*1310(H)

Equipment Weight(kg):

Supply Voltage(VAC):

Frequency(HZ):

50/60

Required Purity Of Nitrogen(%):

>99.999

Air Input Pressure(Mpa):

Highlight:

Preheating System Offline Selective Soldering Machine

High Stability Selective Solder

Program System Offline Selective Soldering Machine

Product Description

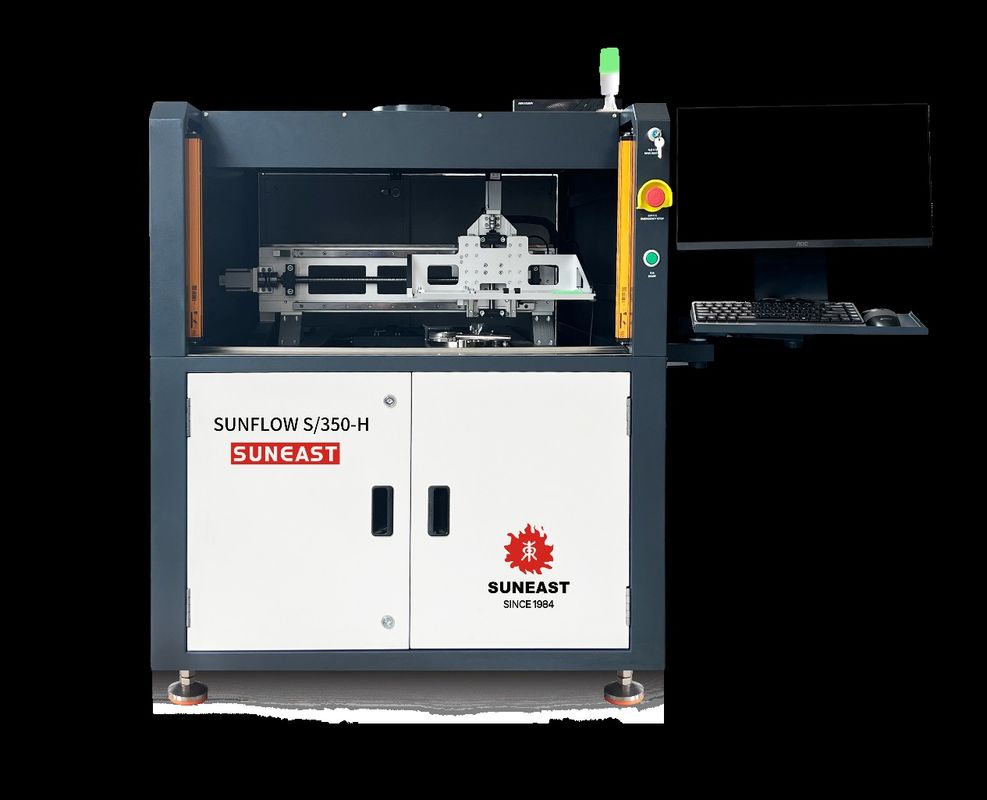

Offline Selective Soldering Machine - SUNFLOW S/350-H

Product Specifications

Attribute	Value
Name	Offline Selective Soldering Machine
Overall dimension (mm)	1080(L)1440(W)1310(H)
Equipment Weight (kg)	650
Supply Voltage (VAC)	380
Frequency (HZ)	50/60
Required Purity of Nitrogen (%)	>99.999
Air Input Pressure (Mpa)	0.6

Key Features

Compact structure with space-saving design
Universal fixture for multi-variety, small batch production and sampling
High stability electromagnetic pump soldering system
Zone preheating system for energy-efficient operation
Camera programming system with visual real-time monitoring
Safety grating for operator protection

System Components

Soldering System

Program System

Visual Monitoring

Spraying System

Preheating System

Fixture & Safety

Soldering Process

Place PCB board on universal fixture
Start automated process with button press
System performs selective fluxing, preheating, and soldering
Remove completed board

The 3-axis linkage motion module precisely moves the PCB in X/Y/Z directions to complete the entire fluxing, preheating, and soldering process according to pre-programmed instructions.

Technical Highlights

Three-axis motion system with manual board placement
Precision fluxing system with three-fluid valve nozzle
Infrared zone preheating with ±2℃ temperature control
Self-developed electromagnetic pump for stable soldering
Multiple programming methods with high-definition camera
Compact design ideal for small batch production

Custom Options

Other models in the SUNFLOW S offline selective soldering series are available for customization to meet specific production requirements.
