180° PCB Rotation: Automatically turns PCBs for dual-side production, eliminating manual handling
Intelligent Control: PLC-controlled operation with conditional turning based on input signals
Versatile Operation: Functions as both turning conveyor and straight-line buffer device
Adjustable Width: Manual track adjustment accommodates various PCB sizes
Safety Design: Fully enclosed rotation area ensures operator protection
High Efficiency: Continuous 180° turning capability reduces production cycle time
Standard Integration: SMEMA communication compatible with production lines

Technical Specifications

Attribute	Value
Model	TU-350 \| TU-460
Machine Dimension	600(L)×1030(W)×1340(H)mm \| 600(L)×1140(W)×1340(H)mm
Machine Weight	200kg \| 250kg
Power	0.2KW
Conveying Height	900±20mm
PCB Size Range	Min: 70×50×0.7mm ~ Max: 520×350×4.8mm (TU-350) Min: 70×70×0.7mm ~ Max: 520×460×4.8mm (TU-460)
Loading Capacity	0-5kg
Control Mode	PLC
Production Cycle	≤10/s
Power Supply	AC220V 50/60Hz
Gas Pressure	0.4-0.7Mpa
Direction	Left to Right (Right to Left optional)
Track Adjustment	Manual

Operational Advantages

Precision turning mechanism ensures accurate PCB orientation for subsequent processing
Reduces labor requirements and increases production line automation
Flexible configuration adapts to varying production requirements
Robust construction ensures reliable performance in industrial environments

Tags:

Turning Conveyor

PCB inspection conveyor

Fully Automatic PCB Loader

Full Automatic PCB Loader 0.3KW 0.5KW SMT Loader Machine AC220V

Get Best Price

Video

Fully Automatic PCB Loader PLC PCB Magazine Loader Suneast

Get Best Price

Video

Dual Track Turning Conveyor Linking AOI Parallel Transfer Conveyor

Get Best Price

Video

Load PCB Stocker Automatic Storage Feeding Balance

Get Best Price

Video

Automated Buffering Feeding NG/OK Buffer Stocker Precision Motor

Get Best Price

Video

Single Track PCB Inspection Conveyor AC220V PCB Handling Conveyor

Get Best Price

Video

Bare Board Vacuum Automatic PCB Loader Machine High Pressure

Get Best Price

Video

Automated PLC Control Turning Conveyor AC220V 50Hz/60Hz

Get Best Price

Products Details

Home > Products >

SMT Peripheral Equipment

Automated PLC Control Turning Conveyor AC220V 50Hz/60Hz

All Category

Wave Soldering Machines

Reflow Soldering Oven

Selective Wave Soldering Machine

Vertical Curing Oven

Tunnel Ovens

Solder Paste Printer

IC Bonding Machine

Semiconductor Ovens

Linear Motor

SMT Peripheral Equipment

Automated PLC Control Turning Conveyor AC220V 50Hz/60Hz

Brand Name:	Suneast
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Brand Name:

Suneast

Certification:

CE、ISO

Name:

Turn Conveyor

Dimension:

600(L)*1030(W)*1340(H)mm

Machine Weight:

200kg

Power:

0.2KW

Conveying Height:

900±20mm

Control Mode:

PLC

Power Supply:

AC220V 50/60Hz

Gas Pressure:

0.4-0.7Mpa

Minimum Order Quantity:

≥1 pc

Price:

Negotiable

Packaging Details:

Plywood crate

Delivery Time:

25~50 days

Payment Terms:

T/T

Highlight:

magnetic 11.2nm linear motor

magnetic 11.2nm motor linear

magnetic linear 11.2nm motor

Product Description

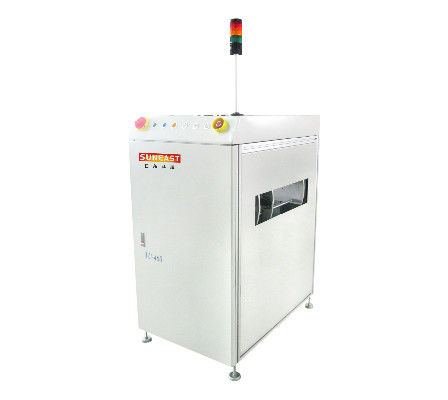

Automated PLC Control Turning Conveyor AC220V 50Hz/60Hz

Key Features

180° PCB Rotation: Automatically turns PCBs for dual-side production, eliminating manual handling
Intelligent Control: PLC-controlled operation with conditional turning based on input signals
Versatile Operation: Functions as both turning conveyor and straight-line buffer device
Adjustable Width: Manual track adjustment accommodates various PCB sizes
Safety Design: Fully enclosed rotation area ensures operator protection
High Efficiency: Continuous 180° turning capability reduces production cycle time
Standard Integration: SMEMA communication compatible with production lines

Technical Specifications

Attribute	Value
Model	TU-350 \| TU-460
Machine Dimension	600(L)×1030(W)×1340(H)mm \| 600(L)×1140(W)×1340(H)mm
Machine Weight	200kg \| 250kg
Power	0.2KW
Conveying Height	900±20mm
PCB Size Range	Min: 70×50×0.7mm ~ Max: 520×350×4.8mm (TU-350) Min: 70×70×0.7mm ~ Max: 520×460×4.8mm (TU-460)
Loading Capacity	0-5kg
Control Mode	PLC
Production Cycle	≤10/s
Power Supply	AC220V 50/60Hz
Gas Pressure	0.4-0.7Mpa
Direction	Left to Right (Right to Left optional)
Track Adjustment	Manual

Operational Advantages

Precision turning mechanism ensures accurate PCB orientation for subsequent processing
Reduces labor requirements and increases production line automation
Flexible configuration adapts to varying production requirements
Robust construction ensures reliable performance in industrial environments
