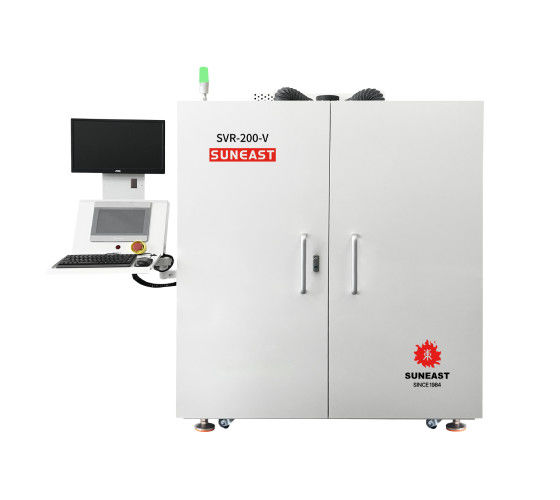

Vertical Curing Oven Machine Streamlined Industrial Curing Oven

Brand Name:	Suneast
Model Number:	SVR-200-V｜SVR-300-V｜SVR-400-V
MOQ:	≥1 pc
Price:	Negotiable
Packaging Details:	Plywood crate
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, Guangdong Province, China

Certification:

CE、ISO

Name:

Vertical Curing Oven

Model:

SVR-200-V

Dimension:

1486(L)*1830(W)*2100(H)mm

Weight:

1300kg

Inlet Height:

900±30mm

Storage Quantity:

24pcs

Layers Spacing:

Running Power:

Temperature Control Accuracy:

Temperature Deviation:

Power Supply:

3P5L 380V 50/60Hz

Customizable:

Highlight:

motor 11.2nm magnetic linear

motor 11.2nm linear magnetic

motor magnetic 11.2nm linear

Product Description

Vertical Curing Oven Machine Streamlined Industrial Curing Oven

Product Specifications

Name	Vertical Curing Oven
Model	SVR-200-V
Dimension	1486(L)1830(W)2100(H)mm
Weight	1300kg
Inlet height	900±30mm
Storage quantity	24pcs
Layers spacing	24mm
Running power	4kw
Temperature control accuracy	±1℃
Temperature deviation	≤±2℃
Power supply	3P5L 380V 50/60Hz
Customizable	Yes

Product Overview

The SVR-V Series Vertical Curing Oven features a newly upgraded design with enhanced efficiency and precision. Its segmented heating system with independent temperature control ensures optimal performance, while the stable transportation system and automatic loading/unloading capabilities enable intelligent production with high efficiency.

Key Advantages

Optimal solution for longboard curing applications
Open layout design for easy maintenance
Adjustable storage quantity for flexible operation
Compact footprint with lower energy consumption

Advanced Features

Roller type conveying mode eliminates rail wear risk and lubrication requirements, reducing maintenance costs

Precision servo motor lifting system ensures smooth operation and accurate positioning

Optional barcode reader enables product traceability for smart factory integration

Applications

Ideal for thermo curing processes including chip bonding, under fill, and components packing in industries such as LED, FPC, automotive, 3C electronics, motors, instruments, and communications. Particularly suitable for long board curing applications like LED strips and FPC.

Available Options

Cooling Unit: Optional water chiller for quick cooling or cooling stocker with large storage capacity

Nitrogen System: Includes nitrogen regulating flowmeter and oxygen analyzer

Heating System: Available in 4, 8, or 12 module configurations

Conveyor System: Customizable storage quantity and board spacing

Rack: Space reserved for bottom fixture return line

Temperature Profile

The vertical oven's temperature profile consists of heating and constant temperature stages. Testing with L260mm×W200mm×H20mm fixture shows temperature uniformity deviation ≤1℃.

Model Comparison

Parameter	SVR-200-V	SVR-300-V	SVR-400-V	Remarks
Machine Dimension	L1486xW1830xH2100mm	L1736xW1930xH2150mm	L2036xW2030xH2150mm
Machine Weight	Approx.1300kg	Approx.1600kg	Approx.1800kg
Product Size (MAX)	W250*L520mm	W350*L900mm	W450*L1200mm	MIN:W50*L200mm
Heating Modules	4	8	8	Each module controls temperature independently
Running Power	Approx.4KW	Approx.5KW	Approx.6KW

Installation Requirements

Power Requirements: Three phase five wire: 380V, 50/60Hz; 16mm² wire diameter with 125A leakage protection switch (150-200mA capacity)

Ground Requirements: Must withstand 1000kg/m² pressure

Ventilation Requirements: Ø250mm heat dissipation exhaust duct (15M³/min) and Ø100 exhaust duct (5M³/Min)
