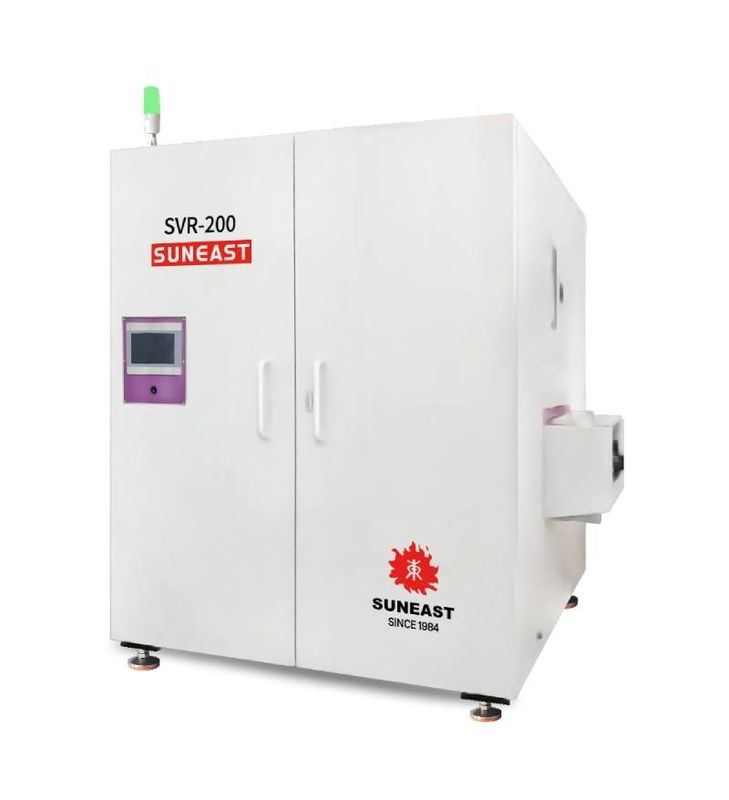

Compact Structure Double Lifting System SVR Series Vertical Curing Oven
On-line vertical curing oven, compact structure, small footprint, maximum saving workshop space; High production efficiency, much higher than the traditional curing oven, especially for products requiring long curing time in the oven, which can effectively improve production capacity, the market demand for vertical curing oven is increasing, it will replace the traditional curing oven and become a trend.
Advantages:
Main application:
Chip bonding, under fill, components packing and other production process which needs thermo curing(.Include LED, FPC, automobile, 3C Electronic product,motor, instrument,communication and other industries)SVR-V series Especially suitable for long board curing, such as LED strips, FPC, etc.
| Double lifting system, great quantity of storage space, can meet the high efficiency production requirements | |
| Adopts high accuracy step motor for buffer and push structure, ensure the pushing accuracy | |
| PCB conveying detection in the oven adopts imported fiber optic sensor which greatly ensure the operation reliability | |
Options:
Cooling unit
1. Equipped with a cooling docking conveyor after the oven(option: water chiller for quick cooling);
2. Equipped with a cooling stocker after the oven, large storage quantity.
Nitrogen system
Equip with Nitrogen regulating flowmeter and the oxygen analyzer.
Heating system
Available for 4 modules, 8 modules, 12 modules
Conveyor system
The storage quantity and the spacing between boards can be customized according to the production process.
Rack
Space can be reserved for the bottom fixture return line.
Temperature profile
a. The temperature profile of vertical oven is composed of heating stage and
constant temperature stage.
b. Test fixture: L260mm*W200mm*H20mm, temperature uniformity deviation ≤1℃
Product parameters:
| Model | SVR-200 | SVR-300 | SVR-400 | Remarks |
| Machine Dimension | L2140xW1800xH2150mm | L2390xW1870xH2150mm | L2870xW2010xH2150mm | |
| Machine Weight | Approx.1600kg | Approx.1800kg | Approx.2000kg | |
| Product size | MAX:W250*L320mm | MAX:W320*L410mm | MAX:W460*L530mm | |
| Inlet height | 900±20mm | |||
| Storage type | Vertical storage | |||
| Storage quantity | Max product storage number:60pcs | Can be customized | ||
| Pitch height | Integral multiple of 25.4mm | Can be customized | ||
| Temperature range | Room temp~200℃ | |||
| Warming up time | Approx.15min | Set temp 150℃ | ||
| Running power | Approx.6KW | |||
| Total power | 45KW | |||
| Temperature control accuracy | ±1℃ | |||
| Abnormal alarm | 3-color signal lamp+Human-machine interface prompt | |||
| Power supply | 3P5L 380V 50/60Hz | |||
Notices:
1.Power requirements:
①Three phase five wire: voltage 380V, frequency 50/60HZ;
②The wire diameter requirement is 16mm², with a leakage protection switch of 125A and a leakage capacity of 150-200mA.
2.The ground is required to withstand a pressure of 1000kg/m².
3.External ventilation requirements:
①Specification of heat dissipation exhaust duct Ø250mm; Exhaust air volume 15M³/min;
②Specification of exhaust duct Ø100; Exhaust air volume 5M³/Min.
