SL120 Solder Paste Printer Perfect PCB Assembly

Solder Paste Printer
December 29, 2025
Category Connection: Solder Paste Printer
Chat Now Contact Us
Tags:
#solder paste printing machine #SMT solder paste printer #automatic solder paste printer
Brief: Our team walks you through how the SL120 Solder Paste Printing Machine performs in common PCB assembly scenarios. Watch as we demonstrate the full automatic SMT screen printing process, showcasing high-precision motion control for uniform solder paste distribution and stable printing quality on circuit boards.
Related Product Features:
  • Ideal for large size product printing with a PCB size range from 80x50mm to 1200x360mm.
  • Features simple calibration and maintenance procedures for easy operation.
  • Delivers consistent, stable printing quality with positional accuracy of ±0.01mm.
  • Equipped with independently developed image processing software for precise alignment.
  • High-precision motion control ensures uniform solder paste distribution on PCBs.
  • Offers adjustable print speed from 5-200mm/s and cycle time under 10 seconds.
  • Includes a comprehensive vision system with Germany BASLER camera and automatic mark alignment.
  • Customization options available to meet specific production line requirements.
FAQs:
  • What is the maximum PCB size the SL120 can handle?
    The SL120 Solder Paste Printing Machine can handle PCB sizes up to 1200mm in length and 360mm in width, making it perfect for large size product printing applications.
  • What level of printing accuracy does this machine provide?
    This machine delivers exceptional precision with positional accuracy of ±0.01mm and printing accuracy of ±0.025mm, ensuring consistent, stable printing quality for your SMT production line.
  • What power and air supply requirements are needed for installation?
    The SL120 requires a single-phase AC 220V±10% 50/60HZ power supply with approximately 3kw total power, and an air supply of 4.5-6kgf/cm² with an inlet pipe diameter of ≥8mm.
  • Does the machine include training for operators?
    Yes, the installation includes training for 2-3 personnel, ensuring your team can effectively operate and maintain the SL120 Solder Paste Printing Machine.
Related Videos

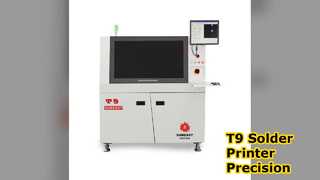

T9 SMT Solder Paste Printer Precision 2D Check 00:03
