Tunnel Drying Oven For PCBs LEDs

Tunnel Ovens
December 29, 2025
Category Connection: Tunnel Ovens
Chat Now Contact Us
Tags:
#conveyor tunnel oven #industrial tunnel oven #Tunnel Drying Oven
Brief: From concept to demonstration, this video highlights the evolution and practical outcomes of the SHR-01B Tunnel Drying Oven. You'll see a detailed walkthrough of its 3P5L board supporting chain conveyor system in action, learn how its 8 heating zones and patented hot air system deliver uniform curing for PCBs and LEDs, and discover the modular design that ensures easy maintenance and energy efficiency in industrial settings.
Related Product Features:
  • Customized stainless steel conveyor chain ensures durability, stability, and minimal wear for long service life.
  • Multi-channel design with 6, 10, or 16 channels increases production capacity for high-volume applications.
  • Modular construction allows for easy maintenance and reduces operational downtime.
  • Patented hot air system provides efficient convection and rapid heat compensation for uniform curing.
  • Multi-layer insulation design reduces external surface temperature, enhancing safety and energy efficiency.
  • Stage temperature control with PID regulation ensures precise temperature accuracy of 1℃.
  • Energy-efficient design saves over 25% power compared to conventional drying ovens.
  • Versatile applications include PCB, LED, capacitor, and automotive electronics baking processes.
FAQs:
  • What are the key applications for the Tunnel Drying Oven?
    This oven is designed for magazine type curing processes, multi-channel conveying, and baking applications for PCBs, LEDs, capacitors, power supply components, electronic products, automotive electronics, semiconductors, and 3C products, including mini LED solidification requiring long curing times.
  • How does the oven ensure temperature uniformity and control?
    The oven features 8 heating zones with stage temperature control using PID regulation, achieving a temperature accuracy of 1℃. The patented hot air system ensures efficient convection and rapid heat compensation for uniform curing across all channels.
  • What customization options are available for this tunnel oven?
    Customization includes conveyor widths of 500mm, 850mm, or bespoke dimensions, multi-channel buffer systems, preheating systems with customizable length, rack systems with fixture installation positions, and optional features like cooling systems, nitrogen systems, MES integration, and custom guide rails for specialized product handling.
Related Videos

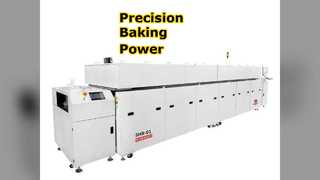

Tunnel Ovens for Perfect Curing 00:06
